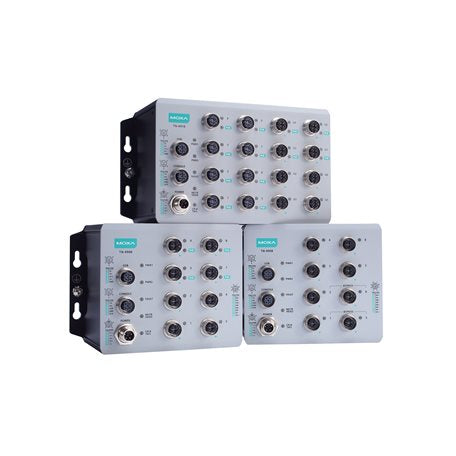

The Moxa TN-4916-ETBN-4GTXBP-WV-CT-T is an IEC 61375 ETBN industrial secure router from the TN-4900 EN 50155 railway range, built for train backbone networks. It provides 12 Fast Ethernet M12 ports and 4 Gigabit M12 ports with bypass relay, a wide-voltage 24 to 110 VDC redundant power input, and a conformal-coated, -40 to 70°C rated design for harsh rolling stock environments.

This variant is the non-PoE, non-firewall model with conformal coating and the wide-temperature rating. Bypass relays on the Ethernet ports help maintain network continuity during power loss, while dual redundant power inputs with overload current and reverse polarity protection support dependable operation onboard trains.

Features

- IEC 61375 Ethernet Train Backbone Node (ETBN) functionality for train backbone networks
- Bypass relay on Ethernet ports to maintain network continuity during power loss
- Redundant dual power inputs with overload current and reverse polarity protection
- Conformal coating for protection in harsh railway environments
- Secure router functions for onboard train network segmentation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEC 61375 ETBN secure router (EN 50155 railway series)
- 12 x 10/100BaseT(X) ports, M12 D-coded 4-pin female, with bypass relay
- 4 x 10/100/1000BaseT(X) ports, M12 X-coded 8-pin female, with bypass relay
- Power input: 24/36/48/72/96/110 VDC, redundant dual inputs
- Operating voltage: 16.8 to 137.5 VDC
- Power connector: M12 K-coded 5-pin male
- IP40 protection
- Operating temperature: -40 to 70°C
- Conformal coating (CT), wide-temperature (-T) model

FAQs

Q: What standard does the TN-4916-ETBN-4GTXBP-WV-CT-T support?
A: It supports IEC 61375 Ethernet Train Backbone Node (ETBN) functionality and belongs to Moxa's TN-4900 EN 50155 railway series.

Q: What ports does this router provide?
A: It has 12 x 10/100BaseT(X) M12 D-coded ports and 4 x 10/100/1000BaseT(X) M12 X-coded ports, all with bypass relay.

Q: What power input does it accept?
A: It accepts 24/36/48/72/96/110 VDC on redundant dual inputs, with an operating voltage range of 16.8 to 137.5 VDC via an M12 K-coded 5-pin connector.

Q: What temperature range is it rated for?
A: The wide-temperature (-T) model is rated for operation from -40 to 70°C.

Q: Does this model include conformal coating?
A: Yes. The CT designation indicates conformal coating for added protection in harsh railway environments.

Q: How does this model differ from other TN-4900 variants?
A: This is the non-PoE, non-firewall variant with 12 Fast Ethernet ports and 4 Gigabit bypass ports, plus conformal coating and wide-temperature operation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
