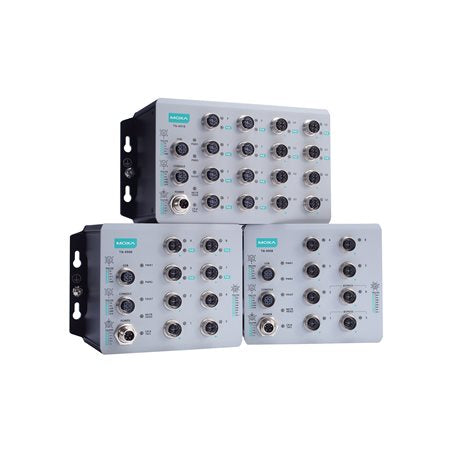

Moxa TN-4916-ETBN-12PoE-4GTXBP-WV-CT-T | TN-4900 ETBN Rail Router, 12 PoE+ FE, 4GbE Bypass, 24-110VDC

Authorised Moxa Partner

SKU:TN-4916-ETBN-12PoE-4GTXBP-WV-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TN-4916-ETBN-12PoE-4GTXBP-WV-CT-T is an IEC 61375 ETBN industrial secure router built for rolling stock backbone networks. It provides 12 Fast Ethernet PoE+ ports and 4 Gigabit Ethernet backbone ports with bypass relay, with NAT and routing functionality for cross-network applications. This conformal-coated variant runs from redundant 24 to 110 VDC inputs.

All ports use M12 connectors for vibration-resistant rail installations, with a 95 W total PoE power budget for powering onboard devices. The IP40 metal housing supports wall mounting and operation from -40 to 70°C, and the unit meets IEC 62443-4-2 Security Level 2 for industrial cybersecurity.

Features

- Designed for rolling stock backbone networks
- IEC 61375 ETBN-compliant secure router
- Four backbone ports with bypass relay
- NAT and routing functionality for cross-network applications
- PoE+ on all 12 Fast Ethernet ports, 95 W total budget
- Redundant dual wide-range DC power inputs (24 to 110 VDC)
- M12 connectors for vibration-resistant rail installations
- PCB conformal coating for harsh environments
- IEC 62443-4-2 Security Level 2 industrial cybersecurity
- Wide -40 to 70°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12 x 10/100BaseT(X) PoE+ ports (M12 D-coded, 4-pin female)
- 4 x 10/100/1000BaseT(X) ports with bypass relay (M12 X-coded, 8-pin female)
- 95 W total PoE power budget
- 24/36/48/72/96/110 VDC redundant dual power inputs
- Operating voltage range: 16.8 to 137.5 VDC
- Power connector: M12 K-coded 5-pin male
- Max. power consumption: 40.5 W (system without PoE load)
- Overload current and reverse polarity protection
- IEC 61375 ETBN support
- IP40 metal housing, wall mounting
- PCB conformal coating
- Operating temperature: -40 to 70°C
- Storage temperature: -40 to 85°C
- Relative humidity: 5 to 95% (non-condensing)
- Altitude: 3,000 m
- IEC 62443-4-2 Security Level 2

FAQs

Q: What standard does the TN-4916-ETBN-12PoE-4GTXBP-WV-CT-T support?
A: It supports IEC 61375 ETBN, making it suitable as a backbone router in rolling stock networks.

Q: How many PoE ports does it provide and what is the power budget?
A: It has 12 Fast Ethernet PoE+ ports on M12 D-coded connectors, sharing a 95 W total PoE power budget.

Q: What does the bypass relay do on the Gigabit ports?
A: The four Gigabit Ethernet backbone ports include a bypass relay, which helps maintain backbone connectivity along the train consist.

Q: What power input does this model accept?
A: It has redundant dual DC inputs supporting 24, 36, 48, 72, 96 and 110 VDC, with an operating range of 16.8 to 137.5 VDC, via an M12 K-coded 5-pin connector.

Q: Is the circuit board protected for harsh environments?
A: Yes, this model has PCB conformal coating and operates from -40 to 70°C in an IP40 metal housing.

Q: Does it support routing between networks?
A: Yes, it provides NAT and routing functionality for cross-network applications, and meets IEC 62443-4-2 Security Level 2 for industrial cybersecurity.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
