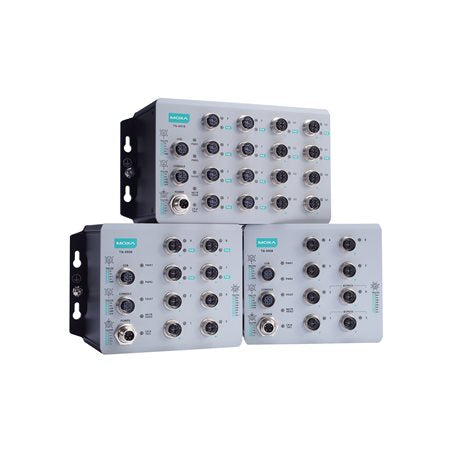

Moxa TN-4916-8PoE-4GPoE-4GTX-WV-CT-T | TN-4900 EN 50155 Secure Router, 8x PoE+ FE, 4x PoE+ GbE, 95W

Authorised Moxa Partner

SKU:TN-4916-8PoE-4GPoE-4GTX-WV-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TN-4916-8PoE-4GPoE-4GTX-WV-CT-T is an EN 50155 rail-grade industrial secure router with M12 connectors, built for onboard train networks and other harsh environments. It provides 8 Fast Ethernet PoE+ ports, 4 Gigabit PoE+ ports and 4 further Gigabit ports, with a total PoE+ budget of 95 W. Firewall, IPsec VPN and routing functions secure and segment traffic, and the conformal-coated metal housing operates from -40 to 70°C.

Redundant dual power inputs accept 24 to 110 VDC (operating range 16.8 to 137.5 VDC) with reverse polarity protection. Layer 2 redundancy via RSTP, STP and Turbo Ring v2, plus VARP routing redundancy, keeps the network available. An RS-232 console port and an M12 USB port for ABC-02 configuration backup simplify deployment and maintenance in wall-mount installations.

Features

- Firewall to protect the network
- IPsec VPN with 3DES, DES, AES-128/192/256 encryption
- MD5 and SHA-256 authentication, RSA (1024/2048-bit), X.509 v3 certificates
- Secure Boot, L2TP (server), RADIUS, trusted access control
- Layer 2 redundancy: RSTP, STP, Turbo Ring v2, static port trunk
- Routing redundancy: VARP
- NTP/SNTP server and client time management
- Redundant dual power inputs

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) PoE+ ports (M12 D-coded 4-pin female)
- 4 x 100/1000BaseT(X) PoE+ ports (M12 X-coded 8-pin female)
- 4 x 10/100/1000BaseT(X) ports (M12 X-coded 8-pin female)
- Total PoE+ power budget: 95 W
- Power input: 24/36/48/72/96/110 VDC, redundant dual inputs (operating range 16.8 to 137.5 VDC)
- Power connector: M12 K-coded 5-pin male
- Input current (PoE models): 5.9 A @ 24 V
- 1 x RS-232 console port (M12 B-coded 5-pin female)
- USB: M12 A-coded 5-pin female (for ABC-02 USB storage)
- Housing: metal, IP40
- Dimensions: 206 x 115 x 100 mm
- Operating temperature: -40 to 70°C
- Conformal coating (CT)
- Reverse polarity protection supported
- MTBF: 550,148 hrs
- Wall-mount installation

FAQs

Q: How many PoE+ ports does the TN-4916-8PoE-4GPoE-4GTX-WV-CT-T provide?
A: It provides 12 PoE+ ports in total: 8 Fast Ethernet and 4 Gigabit, sharing a 95 W total PoE+ power budget.

Q: What connectors does this router use?
A: The Ethernet ports use M12 connectors: D-coded 4-pin for the Fast Ethernet PoE+ ports and X-coded 8-pin for the Gigabit ports. Power uses an M12 K-coded 5-pin connector.

Q: What power input does it accept?
A: It accepts 24, 36, 48, 72, 96 or 110 VDC on redundant dual inputs, with an operating range of 16.8 to 137.5 VDC and reverse polarity protection.

Q: What operating temperature range is supported?
A: The router operates from -40 to 70°C, and the conformal coating (CT) adds protection in harsh environments.

Q: Which security and redundancy functions are included?
A: It includes a firewall, IPsec VPN, Secure Boot, RADIUS and X.509 certificate support. Redundancy options are RSTP, STP, Turbo Ring v2, static port trunk and VARP routing redundancy.

Q: How is configuration backed up?
A: The M12 USB port supports the ABC-02 backup configurator, allowing configuration backup and restore using USB storage.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
