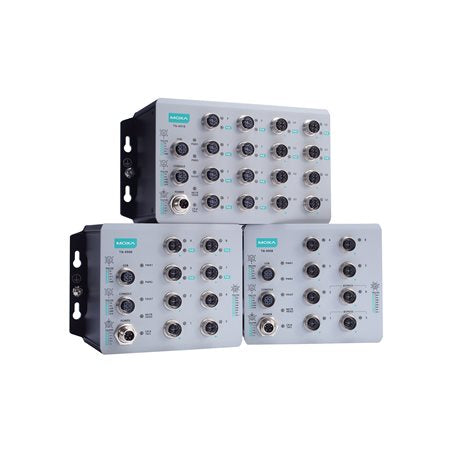

Moxa TN-4916-4GTX-WV-CT-T | TN-4900 EN 50155 Secure Router, 12x FE, 24-110 VDC, Coated, 4x GbE

Authorised Moxa Partner

SKU:TN-4916-4GTX-WV-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TN-4916-4GTX-WV-CT-T is an EN 50155 railway industrial secure router with 12 Fast Ethernet ports and 4 Gigabit Ethernet ports. It is built for rolling stock and railway deployments, accepting 24 to 110 VDC redundant dual power inputs, with a conformal-coated PCB and operation from -40 to 70°C.

M12 connectors keep connections secure under vibration, with M12 D-coded Fast Ethernet ports (including a bypass relay) and M12 X-coded Gigabit ports. A metal IP40 housing, wall mounting and IEC 62443-4-2 Security Level 2 cybersecurity support make it suited to secure, reliable train networks.

Features

- Designed for rolling stock and railway applications (EN 50155)
- Secure router functionality with IEC 62443-4-2 Security Level 2 cybersecurity
- Redundant dual power inputs with wide 24-110 VDC range
- Conformal coating protects the PCB in harsh environments
- M12 connectors for vibration-resistant connections
- Bypass relay on Fast Ethernet ports

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12 x 10/100BaseT(X) ports (M12 D-coded 4-pin, with bypass relay)
- 4 x 10/100/1000BaseT(X) ports (M12 X-coded 8-pin)
- Input voltage: 24/36/48/72/96/110 VDC, redundant dual inputs
- Operating voltage: 16.8 to 137.5 VDC
- Power connector: M12 K-coded 5-pin male
- Power consumption: 24.3 W max.
- Input current: 1.0 A @ 24 V
- Overload current and reverse polarity protection
- Metal housing, IP40, wall mounting
- PCB conformal coating
- Operating temperature: -40 to 70°C
- MTBF: 1,337,525 hrs
- Cybersecurity: IEC 62443-4-2 Security Level 2
- Certifications: EN 50155, RoHS, CRoHS, WEEE

FAQs

Q: Is the TN-4916-4GTX-WV-CT-T suitable for railway use?
A: Yes. It is EN 50155 certified for rolling stock and railway applications, with M12 connectors and a wide operating temperature range of -40 to 70°C.

Q: What power input does this router accept?
A: It accepts 24/36/48/72/96/110 VDC on redundant dual inputs, with an operating voltage range of 16.8 to 137.5 VDC via an M12 K-coded 5-pin connector.

Q: How many and what type of ports does it have?
A: It has 12 x 10/100BaseT(X) M12 D-coded ports with bypass relay and 4 x 10/100/1000BaseT(X) M12 X-coded ports. None of the ports provide PoE.

Q: What does the CT suffix mean?
A: CT denotes a conformal-coated PCB, which helps protect the electronics from moisture, dust and other harsh environmental conditions.

Q: What cybersecurity standard does it support?
A: It supports IEC 62443-4-2 Security Level 2 industrial cybersecurity.

Q: How is the router mounted?
A: It has a metal IP40 housing designed for wall mounting.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
