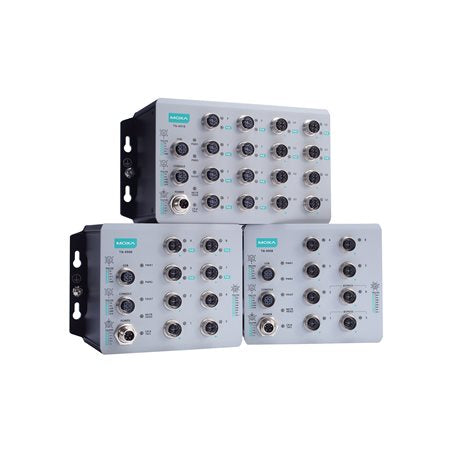

Moxa TN-4916-12PoE-4GTX-WV-CT-T | TN-4900 EN 50155 Secure Router, 12x PoE+ FE, 24-110VDC, 4x GbE

Authorised Moxa Partner

SKU:TN-4916-12PoE-4GTX-WV-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TN-4916-12PoE-4GTX-WV-CT-T is an EN 50155 railway-grade industrial secure router from the TN-4900 series, built for onboard rolling stock networks. It provides 12 Fast Ethernet PoE+ ports on M12 D-coded connectors and 4 Gigabit Ethernet ports on M12 X-coded connectors, with a 95 W total PoE budget for powering cameras, access points and other onboard devices. Redundant 24 to 110 VDC power inputs, PCB conformal coating and an operating range of -40 to 70°C suit harsh train environments.

Layer 3 routing with RIP, OSPF, static routes and VRRP is combined with a stateful firewall, IPsec VPN with up to 250 tunnels, Secure Boot and IEC 62443-4-2 Security Level 2 cybersecurity. Turbo Ring v2, RSTP and STP provide network redundancy, and the IP40 metal housing is wall mounted. TRDP railway protocol support makes it a good fit for onboard train communication systems.

Features

- Designed for onboard railway networking, certified to EN 50155 and EN 50121-4
- M12 connectors for vibration-resistant connections
- PoE+ (IEEE 802.3af/at) output on all 12 Fast Ethernet ports
- Layer 3 routing with RIP, OSPF, static routes and VRRP
- Stateful firewall in router and transparent modes with DoS/DDoS protection
- IPsec VPN with up to 250 tunnels and L2TP server
- Secure Boot and IEC 62443-4-2 SL2 cybersecurity
- Turbo Ring v2, RSTP and STP redundancy
- TRDP railway protocol support
- Redundant dual wide-range DC power inputs with overload and reverse polarity protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12 x 10/100BaseT(X) PoE+ ports, M12 D-coded with bypass relay
- 4 x 10/100/1000BaseT(X) ports, M12 X-coded
- 95 W total PoE power budget
- Redundant dual power inputs, 24/36/48/72/96/110 VDC (16.8 to 137.5 VDC operating)
- Maximum power consumption 40.5 W
- Routing throughput 450,000 FPS, firewall throughput up to 350,000 packets per second
- Up to 250 concurrent IPsec VPN tunnels
- MAC table 16 K, up to 32 VLANs, 1024 IGMP groups
- Console port RS-232 (M12 B-coded), USB interface for ABC-02 storage
- IP40 metal housing, wall mounting
- Operating temperature -40 to 70°C
- PCB conformal coating
- EN 50155 and EN 50121-4 railway certified, IEC 62443-4-2 Security Level 2

FAQs

Q: What railway standards does the TN-4916-12PoE-4GTX-WV-CT-T meet?
A: It is certified to EN 50155 and EN 50121-4, and also complies with IEC 60068-2, IEC 60571 and IEC 61373 for railway environmental, electrical and vibration requirements.

Q: How many PoE ports does it have and what is the power budget?
A: All 12 Fast Ethernet ports support PoE+ (IEEE 802.3af/at), sharing a total PoE budget of 95 W.

Q: What DC input voltage does it accept?
A: It has redundant dual power inputs for nominal 24/36/48/72/96/110 VDC, with an operating range of 16.8 to 137.5 VDC, on an M12 K-coded connector.

Q: Does it support Layer 3 routing and VPN?
A: Yes. It supports static routes, RIPv1/v2, OSPF and VRRP, plus IPsec VPN with up to 250 tunnels and an L2TP server.

Q: What connectors are used for the Ethernet ports?
A: The 12 Fast Ethernet PoE+ ports use M12 D-coded 4-pin connectors with bypass relay, and the 4 Gigabit ports use M12 X-coded 8-pin connectors.

Q: Is it suitable for harsh environments?
A: Yes. It has an IP40 metal housing, PCB conformal coating and an operating temperature range of -40 to 70°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
