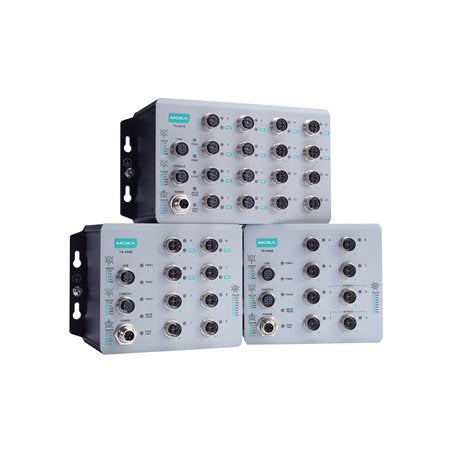

• Moxa TN-4908 ETBN firewall router with 3 gray modules, black connectors, teal branding
1 1

Moxa

Moxa TN-4908-ETBN-4GTX-4GTXBP-WV-CT-T | TN-4900 EN 50155 Railway ETBN Router, 24-110VDC, 4x GbE Bypass

Moxa TN-4908-ETBN-4GTX-4GTXBP-WV-CT-T | TN-4900 EN 50155 Railway ETBN Router, 24-110VDC, 4x GbE Bypass

Authorised Moxa Partner

TN-4908-ETBN-4GTX-4GTXBP-WV-CT-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa TN-4900 ETBN EN 50155 industrial router is built for rolling-stock networks, combining IEC 61375 ETBN functionality with static, RIP and OSPF routing. This ETBN variant has no firewall and no PoE, and provides four 10/100 M12 D-coded ports, four Gigabit M12 X-coded ports and four further Gigabit M12 X-coded ports with bypass relay (4GTX + 4GTXBP).

It accepts redundant 24 to 110 VDC power inputs, runs across -40 to 70°C and uses a conformal-coated IP40 metal housing for wall mounting. M12 connectors, IEC 62443-4-2 certified security features, IPsec VPN and TRDP protocol support make it suited to train backbone and on-board network deployments.

Features

- IEC 61375-2-3 / 61375-2-5 compliant ETBN functionality
- Bypass relay on four Gigabit ports maintains connectivity if the device loses power
- IEC 62443-4-2:2019 certified cybersecurity features
- Static, RIP v1/v2 and OSPF routing with NAT and VRRP
- IPsec VPN, secure boot, RADIUS and TRDP railway protocol support
- Turbo Ring v2 and RSTP/STP network redundancy
- M12 connectors for vibration and shock resistance
- Isolated redundant 24 to 110 VDC power inputs
- Management via web interface, Telnet/serial console, CLI and Windows utility

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x 10/100BaseT(X) M12 D-coded 4-pin female ports
- 4 x 10/100/1000BaseT(X) M12 X-coded 8-pin female ports
- 4 x 10/100/1000BaseT(X) M12 X-coded ports with bypass relay
- ETBN model with no firewall and no PoE ports
- Routing throughput: 450,000 FPS (pure routing)
- Up to 250 IPsec VPN tunnels
- MAC table size 16 K, 32 VLANs (VID 1 to 4094), 1024 IGMP groups
- Console: RS-232 (M12 B-coded 5-pin female); USB (M12 A-coded 5-pin female) for ABC-02 storage
- Input voltage: 24/36/48/72/96/110 VDC redundant dual inputs (16.8 to 137.5 VDC operating)
- Power connector: M12 K-coded 5-pin male
- Input current: 0.65 A @ 24 V
- Overload current and reverse polarity protection
- Metal housing, IP40, wall mounting, PCB conformal coating
- Dimensions: 160 x 115 x 70 mm, weight 1120 g
- Operating temperature: -40 to 70°C; storage -40 to 85°C
- Humidity: 5 to 95% non-condensing; altitude 3,000 m
- Railway: EN 50121-4, EN 50155, EN 45545-2 fire protection
- Shock and vibration: IEC 61373, IEC 60068-2-27/-64
- Safety: IEC 62368, UL 62368
- MTBF: 648,903 hrs (Telcordia SR332 Issue 2)

FAQs

Q: Does this TN-4908 model include a firewall?
A: No. This is the ETBN variant, which provides IEC 61375 ETBN functionality and routing without a firewall.

Q: Does this router support PoE?
A: No. This model has no PoE ports. It is a non-PoE variant.

Q: What does the bypass relay do?
A: Four of the Gigabit M12 X-coded ports (4GTXBP) include a bypass relay, so the link can remain connected through the device if it loses power.

Q: What power supply voltage does it accept?
A: It accepts redundant dual inputs rated 24/36/48/72/96/110 VDC, with an operating range of 16.8 to 137.5 VDC, via an M12 K-coded 5-pin connector.

Q: Is it suitable for railway installations?
A: Yes. It is compliant with EN 50155, EN 50121-4 and EN 45545-2, tested to IEC 61373 shock and vibration, and rated for -40 to 70°C.

Q: What connectors are used on the Ethernet ports?
A: The 10/100 ports use M12 D-coded 4-pin connectors and the Gigabit ports use M12 X-coded 8-pin connectors.
