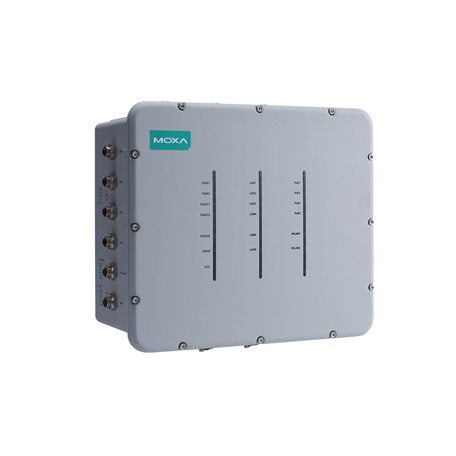

Moxa TAP-323-US-CT-T | TAP-323 Railway Dual-Radio 802.11n AP, IP68, US Band, CT

Authorised Moxa Partner

SKU:TAP-323-US-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TAP-323-US-CT-T is a dual-radio Wi-Fi 4 (802.11n) railway wayside access point built for train-to-ground wireless communication. This US band model combines 2.4 GHz and 5 GHz radios with data rates up to 300 Mbps, an IP68 metal housing, PCB conformal coating and an operating range of -40 to 75°C, making it suited to harsh outdoor rail environments.

Four M12 D-coded 10/100BaseT(X) ports provide 802.3af PoE, with two 1000BaseSFP slots and five N-type antenna connectors for flexible deployment. Redundant 110/220 VAC/VDC power inputs, EN 50155 and EN 50121-4 railway certification and EN 45545-2 fire protection support dependable operation in rolling stock and wayside installations.

Features

- Dual-radio design for train-to-ground wireless communication along the railway wayside
- IP68 metal housing for outdoor use
- Wide -40 to 75°C operating temperature range
- PCB conformal coating for harsh environments
- Redundant dual 110/220 VAC/VDC power inputs with reverse polarity protection
- 802.3af PoE on the four M12 Ethernet ports
- Rugged M12 and M23 connectors
- Compliant with EN 50155, EN 50121-4 and EN 45545-2 railway standards
- Management via SNMPv1/v2c/v3, web console, Telnet and SSH with HTTPS/SSL and RADIUS support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi 4 (802.11n) dual-radio, 2.4 GHz and 5 GHz, up to 300 Mbps (HT40)
- US frequency band
- 5 x N-type female antenna connectors
- 4 x 10/100BaseT(X) M12 D-coded 4-pin ports with 802.3af PoE
- 2 x 1000BaseSFP slots
- USB M12 A-coded 5-pin port for ABC-02 storage, USB-M12 console port
- Wireless security: WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise (802.1X/RADIUS, TKIP, AES)
- Input voltage: 110/220 VDC/VAC, redundant dual inputs, M23 6-pin power connector
- Power consumption: 85 W maximum
- Housing: metal, IP68 rated, PCB conformal coating
- Dimensions: 324 x 279 x 156 mm, weight 10 kg
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Certifications: EN 50155, EN 50121-4, EN 45545-2, FCC, EN 18031-1
- MTBF: 290,937 hours (Telcordia SR-332)

FAQs

Q: Which frequency band does the TAP-323-US-CT-T support?
A: This model is the US band version, supporting 2.412-2.462 GHz on 2.4 GHz and the 5.18-5.825 GHz channels on 5 GHz, including DFS channels, with 20 or 40 MHz channel widths.

Q: What does the CT suffix mean?
A: CT indicates PCB conformal coating, which protects the electronics in harsh environments. This variant is also rated for -40 to 75°C operation.

Q: Does it support Power over Ethernet?
A: Yes. The four 10/100BaseT(X) M12 D-coded ports support 802.3af PoE for powering connected devices.

Q: What power inputs does it use?
A: It has redundant dual 110/220 VAC/VDC inputs via an M23 6-pin connector, with reverse polarity protection.

Q: What railway standards does it meet?
A: It is certified to EN 50155 and EN 50121-4, with EN 45545-2 railway fire protection compliance.

Q: How many antennas does it need?
A: It provides five N-type female antenna connectors for its dual-radio design.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
