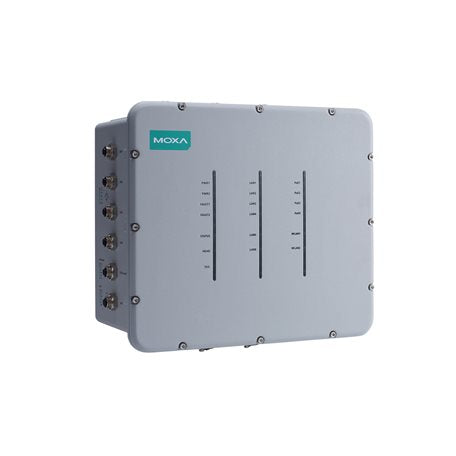

Moxa TAP-323-JP-CT-T | TAP-323 Train-to-Ground Dual-Radio Wi-Fi 4 AP, JP Band, IP68

Authorised Moxa Partner

SKU:TAP-323-JP-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TAP-323-JP-CT-T is a railway train-to-ground wayside dual-radio Wi-Fi 4 (802.11a/b/g/n) access point built for trackside networks. This JP band variant operates on 2.412-2.484 GHz and 5.180-5.700 GHz with 20 MHz channels, and its IP68 outdoor enclosure is rated for -40 to 75°C operation.

Redundant dual 110/220 VDC/VAC power inputs via an M23 6-pin male connector suit flexible wayside deployments. Two integrated fibre ports support wayside network redundancy with Turbo Chain, while PSE ports can power connected devices and sub-50 ms controller-based Turbo Roaming keeps train-to-ground communication seamless.

Features

- Redundant dual AC or DC power inputs for flexible wayside deployments
- Dual radios for different train-to-ground applications
- 2 integrated fibre ports for wayside network redundancy with Turbo Chain
- Seamless train-to-ground communication with sub-50 ms controller-based Turbo Roaming

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi 4 (802.11a/b/g/n) dual radio
- JP band: 2.412-2.484 GHz and 5.180-5.700 GHz (20 MHz channels)
- Operating temperature -40 to 75°C
- Outdoor rated, IP68 enclosure
- Input voltage 110/220 VDC/VAC, redundant dual inputs
- M23 6-pin male power connector
- Power consumption 85 W (max.)
- 2 integrated fibre ports
- PSE ports for powering connected devices

FAQs

Q: What frequency bands does the TAP-323-JP-CT-T support?
A: This JP band variant operates on 2.412-2.484 GHz and 5.180-5.700 GHz using 20 MHz channels.

Q: What is the operating temperature range and ingress protection rating?
A: It is rated for -40 to 75°C operation and has an IP68 outdoor enclosure.

Q: What power inputs does it accept?
A: It accepts redundant dual 110/220 VDC/VAC inputs through an M23 6-pin male power connector, with a maximum power consumption of 85 W.

Q: Does it have fibre connectivity?
A: Yes, it has 2 integrated fibre ports that support wayside network redundancy with Turbo Chain.

Q: How does roaming work for moving trains?
A: It supports controller-based Turbo Roaming with handover times under 50 ms for seamless train-to-ground communication.

Q: Can it power other devices?
A: Yes, it provides PSE ports for powering connected devices.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
