Description

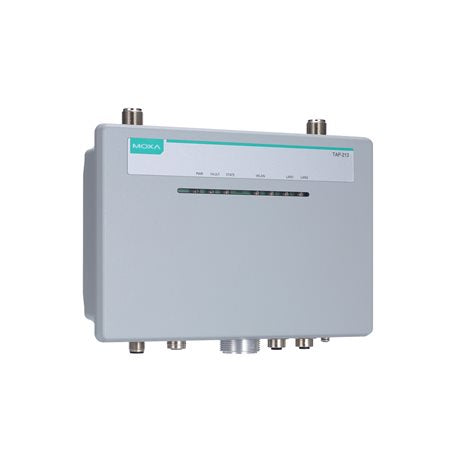

The TAP-213-US-CT-T is an IP68-rated rail wireless access point and client for railway onboard and train-to-ground links. It uses a single 802.11a/b/g/n radio with data rates up to 300 Mbps (HT40), and this US band model covers 2.412-2.462 GHz and 5.180-5.320 GHz with DFS. M12 connectors, conformal coating and a -40 to 75°C operating range suit harsh trackside and onboard deployments.

The unit supports Access Point, Client, Client-Router and Sniffer modes, with Turbo Roaming for fast handover between trackside access points. It runs from redundant 24 to 110 VDC inputs or PoE, includes a 1000BaseSFP slot alongside the M12 X-coded Gigabit Ethernet port, and complies with all EN 50155 mandatory test items for rolling stock.

Features

- IEEE 802.11a/b/g/n compliant for broad client compatibility
- Redundant dual DC power inputs or PoE for resilient power
- QoS (WMM) and VLAN support for efficient network traffic
- Controller-based Turbo Roaming with handover under 50 ms
- Client-based Turbo Roaming handover under 150 ms with 3 channels and WPA2
- Complies with all EN 50155 mandatory test items
- IP68 metal housing with wide -40 to 75°C operating range
- Anti-vibration, waterproof and dustproof M12 connectors
- High-power 400 mW (max.) radio
- Wide-range 24 to 110 VDC power input

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11a/b/g/n single radio, up to 300 Mbps (HT40)
- US band: 2.412-2.462 GHz and 5.180-5.320 GHz, with DFS
- Channel bandwidth: 20 MHz and 40 MHz
- 1 x 10/100/1000BaseT(X) M12 X-coded 8-pin port
- 1 x 1000BaseSFP slot
- Console: USB-M12 (M12 B-coded 5-pin female)
- Input voltage: 24 to 110 VDC, redundant dual inputs, or PoE
- Power consumption: 17.6 W (max.)
- IP68 metal housing
- Operating temperature: -40 to 75°C
- Humidity: 5 to 95% (non-condensing)
- Conformal coating (CT-T)
- Operation modes: AP, Client, Client-Router, Sniffer
- Wireless security: WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise (802.1X/RADIUS, TKIP, AES)
- Management security: HTTPS/SSL, RADIUS, SSH

FAQs

Q: Which frequency band does the TAP-213-US-CT-T support?
A: This is the US band model, covering 2.412-2.462 GHz and 5.180-5.320 GHz with DFS support.

Q: What operating modes does it support?
A: It can operate as an Access Point, Client, Client-Router or Sniffer.

Q: How is the TAP-213-US-CT-T powered?
A: It runs from redundant 24 to 110 VDC dual power inputs or PoE, with reverse polarity protection.

Q: Is it suitable for railway use?
A: Yes. It complies with all EN 50155 mandatory test items and has an IP68 metal housing, M12 connectors and a -40 to 75°C operating range.

Q: What does the CT-T suffix mean?
A: CT-T denotes the conformal coating variant with the -40 to 75°C operating temperature range.

Q: What Ethernet and uplink connections are provided?
A: It has one 10/100/1000BaseT(X) M12 X-coded 8-pin port and one 1000BaseSFP slot.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
