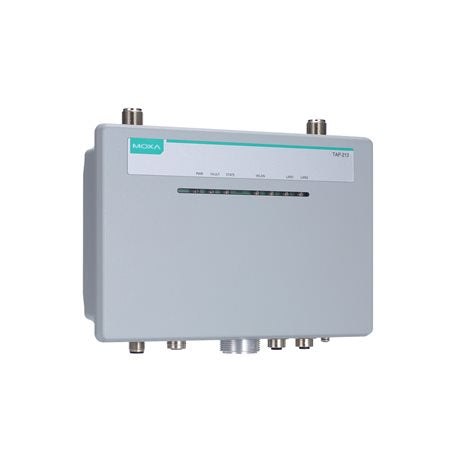

Moxa TAP-213-JP-CT-T | TAP-213 Rail Wi-Fi AP/Client, 802.11n, M12, JP Band, Conformal

Authorised Moxa Partner

SKU:TAP-213-JP-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa TAP-213-JP-CT-T is a TAP-213 series railway onboard Wi-Fi 4 (802.11n) wireless access point and client for train-to-ground communication. This variant is configured for the JP (Japan) frequency band, includes PCB conformal coating and is rated for operation from -40 to 75°C. Dual-band 2.4 GHz and 5 GHz operation delivers up to 300 Mbps (HT40), housed in an IP68 metal enclosure with M12 connectors for vibration-resistant, sealed connections.

The unit offers one M12 X-coded 10/100/1000BaseT(X) port plus a 1000BaseSFP slot, and accepts redundant 24 to 110 VDC inputs or PoE (IEEE 802.3at). It carries EN 50155 and EN 50121-4 railway approvals along with EN 45545-2 fire protection, and supports wall mounting, with optional pole and DIN-rail mounting kits.

Features

- Wi-Fi 4 (802.11n) railway onboard single-radio AP/client for train-to-ground links
- M12 connectors with IP68 protection for harsh, vibration-prone environments
- Dual-band 2.4 GHz and 5 GHz operation
- Redundant dual 24 to 110 VDC inputs plus PoE (IEEE 802.3at) power option
- PCB conformal coating for added protection in harsh environments
- EN 50155 and EN 50121-4 railway approvals with EN 45545-2 fire protection
- Wall, pole or DIN-rail mounting options
- Security and management including HTTPS/SSL, RADIUS, SSH, SNMPv1/v2c/v3 and LLDP

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi 4 802.11a/b/g/n, 2.4 GHz and 5 GHz, up to 300 Mbps (HT40)
- 1 x 10/100/1000BaseT(X) M12 X-coded 8-pin port
- 1 x 1000BaseSFP slot
- JP frequency band: 2.412-2.484 GHz, 5.180-5.240 GHz, 5.260-5.320 GHz, 5.500-5.700 GHz
- IP68 metal housing
- PCB conformal coating
- Operating temperature -40 to 75°C
- 24 to 110 VDC redundant dual inputs, or PoE (IEEE 802.3at)
- Power consumption 17.6 W (max.)
- M12 A-coded USB interface for ABC-02 storage, USB-M12 console port
- Dimensions 220 x 150 x 50.5 mm, weight 1,500 g
- EN 50155, EN 50121-4 and EN 45545-2 railway certifications
- MTBF 758,369 hrs (Telcordia SR-332)

FAQs

Q: What does the JP in TAP-213-JP-CT-T mean?
A: It denotes the Japan frequency band variant, with channel plans covering 2.412-2.484 GHz and the 5 GHz ranges listed in the specifications.

Q: What does the CT suffix indicate?
A: CT indicates PCB conformal coating, which adds protection against moisture, dust and contaminants in harsh railway environments.

Q: Can the TAP-213-JP-CT-T be powered over Ethernet?
A: Yes. It accepts PoE (IEEE 802.3at), or redundant dual 24 to 110 VDC inputs via an M12 A-coded 4-pin power connector.

Q: What operating temperature range is supported?
A: The unit operates from -40 to 75°C, with an ambient relative humidity of 5 to 95% non-condensing.

Q: Which railway standards does it comply with?
A: It complies with EN 50155 and EN 50121-4 for railway applications and EN 45545-2 for railway fire protection.

Q: How can it be mounted?
A: It supports wall mounting as standard, with optional kits available for pole mounting and DIN-rail mounting.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
