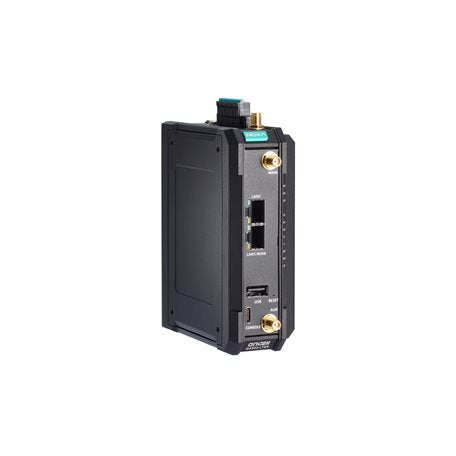

• Moxa OnCell G4302-LTE4-AU-T black switch with gold ports, teal accent
1 1

Moxa

Moxa OnCell G4302-LTE4-AU-T | OnCell G4302-LTE4 Industrial LTE Cat 4 Router, AU Bands, -30 to 70C

Moxa OnCell G4302-LTE4-AU-T | OnCell G4302-LTE4 Industrial LTE Cat 4 Router, AU Bands, -30 to 70C

Authorised Moxa Partner

OnCell G4302-LTE4-AU-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The OnCell G4302-LTE4-AU-T is an industrial LTE Cat. 4 cellular router built for remote and harsh-environment connectivity in Australia. It carries Australian LTE bands (B1/B3/B5/B7/B8/B28), delivers up to 150 Mbps downlink and 50 Mbps uplink, and operates across a -30 to 70°C wide temperature range. Two Gigabit Ethernet ports, dual Nano SIM slots and GuaranLink link redundancy keep sites online.

A 3-in-1 RS-232/422/485 serial port, digital input and relay output, and GNSS support make it suitable for utilities, transport, mining and other industrial deployments. Dual 12 to 48 VDC power inputs, a metal DIN-rail housing and IEC 62443-4-2 aligned security with Secure Boot, firewall, IPsec and OpenVPN support round out a rugged, secure edge gateway.

Features

- Integrated LTE Cat. 4 module with Australian band support
- Dual-SIM GuaranLink cellular link redundancy
- WAN redundancy between cellular and Ethernet
- MRC Quick Link Ultra for centralised monitoring and remote access
- MXsecurity and MXview One management support
- Power management with wake-up scheduling or digital input, suited to vehicle ignition systems
- Deep Packet Inspection (DPI) for industrial protocols
- Developed according to IEC 62443-4-2 with Secure Boot
- Dual power inputs for power redundancy
- Rugged compact design for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- LTE Cat. 4, 150 Mbps downlink / 50 Mbps uplink (20 MHz)
- LTE bands: B1 (2100 MHz), B3 (1800 MHz), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz), B28 (700 MHz)
- UMTS/HSPA bands: B1, B5, B8; GSM/GPRS/EDGE: 900/1800 MHz
- 2 x 10/100/1000BaseT(X) RJ45 ports
- Dual Nano SIM slots (push-eject tray)
- 2 x SMA female cellular antenna connectors
- GNSS support: GPS, GLONASS, Galileo, BeiDou with 1 x SMA female antenna connector
- 1 x RS-232/422/485 serial port (DB9 male), 300 bps to 921.6 kbps
- 1 digital input and 1 relay digital output (1 A @ 24 VDC)
- 1 x USB 2.0 Type A (for ABC-02), RS-232 and USB Type-C console ports
- Input voltage: 12 to 48 VDC, dual power inputs, reverse polarity protection
- Power consumption: 7.6 W typical, 11.52 W maximum
- Metal housing, IP40, DIN-rail mounting (wall mounting with optional kit)
- Dimensions: 125 x 46.2 x 100 mm, weight 610 g
- Operating temperature: -30 to 70°C, storage -40 to 85°C
- Humidity: 5 to 95% (non-condensing)
- VPN: IPsec (up to 15 tunnels), OpenVPN
- Approvals: RCM, FCC, PTCRB, EN 303 413, UKCA, IECEx, ATEX, Class I Division 2

FAQs

Q: Which LTE bands does the OnCell G4302-LTE4-AU-T support?
A: It supports Australian LTE bands B1, B3, B5, B7, B8 and B28, with fallback to UMTS/HSPA on B1/B5/B8 and GSM/GPRS/EDGE on 900/1800 MHz.

Q: What operating temperature range does this model cover?
A: The -T suffix indicates the wide temperature variant, rated for -30 to 70°C operation.

Q: Does it support dual SIM failover?
A: Yes. It has two Nano SIM slots and GuaranLink link redundancy for cellular failover, plus WAN redundancy between cellular and Ethernet.

Q: Can it connect serial devices?
A: Yes. The DB9 port supports RS-232/422/485 with Real COM, RFC2217, TCP Client, TCP Server and UDP operation modes.

Q: What power input does it require?
A: It accepts 12 to 48 VDC through a screw-locked terminal block, with dual power inputs and reverse polarity protection.

Q: What VPN and security features are included?
A: It supports IPsec (up to 15 tunnels) and OpenVPN, plus Secure Boot, firewall, NAT, ACL and RADIUS authentication, developed according to IEC 62443-4-2.
