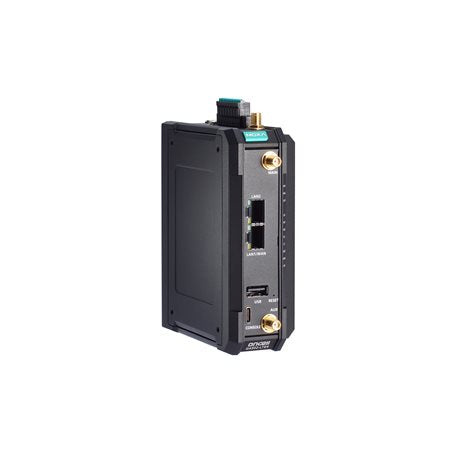

Moxa OnCell G4302-LTE4-AU | OnCell G4302-LTE4 Industrial LTE Cat 4 Router, AU Bands, 2x GbE

Authorised Moxa Partner

SKU:OnCell G4302-LTE4-AU

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa OnCell G4302-LTE4-AU is an industrial LTE Cat 4 cellular router built for Australian networks, covering LTE bands B1, B3, B5, B7, B8 and B28. It delivers up to 150 Mbps downlink and 50 Mbps uplink, with dual Nano SIM slots, two Gigabit Ethernet ports and a standard -10 to 55°C operating range for remote sites, utilities, transport and industrial automation.

A metal DIN-rail housing, dual 12 to 48 VDC power inputs and an RS-232/422/485 serial port make it suited to connecting both IP and legacy serial equipment. Integrated GNSS (GPS, GLONASS, Galileo, BeiDou), IPsec and OpenVPN support, firewall policies and cybersecurity features based on IEC 62443-4-2 help secure OT traffic. Management is supported through Moxa Remote Connect, MXview One, MXconfig and MXsecurity.

Features

- GuaranLink with dual SIM cards for reliable cellular connectivity
- Dual power inputs for power redundancy
- Secure boot for system integrity
- IPsec and OpenVPN functionality
- Firewall policies with DoS protection and NAT
- Deep Packet Inspection for OT-specific protocols
- Cybersecurity features based on IEC 62443-4-2
- Moxa Remote Connect (MRC), MXview One, MXconfig and MXsecurity support
- Hazardous location support (IECEx, ATEX, Class I Div 2) for Hardware Rev 1.1.0 and above

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- LTE Cat 4: 150 Mbps DL / 50 Mbps UL (20 MHz)
- LTE bands B1/B3/B5/B7/B8/B28 (AU)
- UMTS/HSPA (AU): B1/B5/B8; GSM/GPRS/EDGE: 900/1800 MHz
- 2 x 10/100/1000BaseT(X) RJ45 ports
- Dual Nano SIM (push-eject tray)
- 2 x SMA female cellular antenna connectors
- 1 x RS-232/422/485 serial port (DB9 male), 300 bps to 921.6 kbps
- 1 x USB 2.0 Type A
- Console: RS-232 and USB Type-C
- GNSS: GPS, GLONASS, Galileo, BeiDou (1 x SMA female)
- 1 x digital input, 1 x relay digital output (1 A @ 24 VDC)
- Input voltage: 12 to 48 VDC, dual power inputs, screw-locked terminal block
- Power consumption: 7.6 W typical, 11.52 W maximum
- IPsec VPN: up to 15 tunnels; OpenVPN client
- Metal housing, DIN-rail mounting (wall mount with optional kit), IP40
- Dimensions: 125 x 46.2 x 100 mm, weight 610 g
- Operating temperature: -10 to 55°C; storage -40 to 85°C
- 5-year warranty

FAQs

Q: Which LTE bands does the OnCell G4302-LTE4-AU support?
A: It supports LTE B1 (2100 MHz), B3 (1800 MHz), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz) and B28 (700 MHz), with UMTS/HSPA fallback on B1, B5 and B8 and GSM/GPRS/EDGE on 900 and 1800 MHz.

Q: What is the maximum cellular speed?
A: As an LTE Cat 4 router it supports up to 150 Mbps downlink and 50 Mbps uplink using 20 MHz bandwidth.

Q: Does it support dual SIM failover?
A: Yes. It has two Nano SIM slots with push-eject trays and GuaranLink for reliable cellular connectivity.

Q: What is the operating temperature range?
A: This standard temperature -AU model operates from -10 to 55°C. It is not the extended -40 to 75°C variant.

Q: Can it connect serial devices?
A: Yes. It has one DB9 male RS-232/422/485 serial port with baud rates from 300 bps to 921.6 kbps.

Q: How is it powered and mounted?
A: It runs on 12 to 48 VDC with dual power inputs via a screw-locked terminal block, and mounts on a DIN rail, or on a wall with the optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
