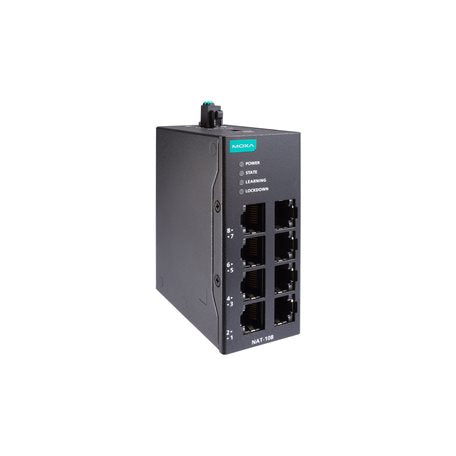

Moxa NAT-108-T | NAT-108 8-Port Industrial NAT Device, -40 to 75°C

Authorised Moxa Partner

SKU:NAT-108-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The NAT-108-T is an 8-port industrial NAT device that simplifies IP configuration of machines and cells on factory networks. This wide temperature model operates from -40 to 75°C, making it suited to unconditioned cabinets and harsh plant environments. It offers 1-to-1 NAT with IP Twins Mapping to remap duplicate LAN IP addresses, plus automatic device whitelisting through Device Lockdown for hands-free network access control.

Eight 10/100BaseT(X) RJ45 ports, a metal DIN-rail housing and a 9.6 to 60 VDC power input make it easy to fit into existing control cabinets. Management is available through a web console, SNMP, SSH and Telnet, and Secure Boot protects system integrity. A USB Type-C console connector is provided for local configuration.

Features

- User-friendly NAT functionality simplifies integration of machines into factory networks
- NAT IP Twins Mapping remaps duplicate LAN IP addresses for conflict-free communication
- Device Lockdown automatically whitelists locally connected devices for hands-free access control
- Ultra-compact, robust industrial design suited to cabinet installation
- Secure Boot checks system integrity at start-up
- Wide -40 to 75°C operating temperature range for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) RJ45 ports
- NAT: 1-to-1, N-to-1, port forwarding, NAT loopback, IP Twins Mapping
- Routing throughput: 15K packets per second (max. 100 Mbps)
- Routing table: max. 300 routing rules
- Concurrent connections: max. 30K, connections per second: max. 4.5K
- Firewall filter: IP address, MAC address, ports
- Port-based auto learning lock: MAC address, IP address
- Management: web console (HTTP/HTTPS), SNMPv1/v2c/v3, SSH, Telnet, TFTP, LLDP, DHCP server/client
- Time management: NTP server/client, SNTP
- Console connector: USB Type-C
- Operating voltage: 9.6 to 60 VDC (12/24/48 VDC input), reverse polarity protection
- Input current: 0.35 A @ 12 VDC, 0.18 A @ 24 VDC, 0.09 A @ 48 VDC
- Power connection: removable terminal block
- Housing: metal, IP-rated dimensions 36 x 90 x 73 mm, weight 330 g
- Installation: DIN-rail mounting, wall mounting with optional kit
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Humidity: 5 to 95% non-condensing
- Safety: UL 62368-1, EMC: EN 55032/35, FCC Part 15B Class A
- MTBF: 5,640,140 hours (Telcordia/Bellcore, GB)

FAQs

Q: What is the difference between the NAT-108-T and the standard NAT-108?
A: The NAT-108-T is the wide temperature model, rated for operation from -40 to 75°C, so it suits unconditioned cabinets and outdoor enclosures.

Q: What NAT modes does the NAT-108-T support?
A: It supports 1-to-1 NAT, N-to-1 NAT, port forwarding, NAT loopback and IP Twins Mapping for remapping duplicate IP addresses.

Q: What is NAT IP Twins Mapping used for?
A: IP Twins Mapping lets identical machines or cells with duplicate LAN IP addresses communicate with the wider network without changing the devices' own configuration.

Q: How is the NAT-108-T powered?
A: It accepts 9.6 to 60 VDC (12/24/48 VDC input) through a removable terminal block, with reverse polarity protection.

Q: How is it mounted?
A: It mounts on a DIN rail in the metal housing, and wall mounting is available with an optional kit.

Q: What is the maximum routing throughput?
A: Routing throughput is up to 15K packets per second, equivalent to a maximum of 100 Mbps.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
