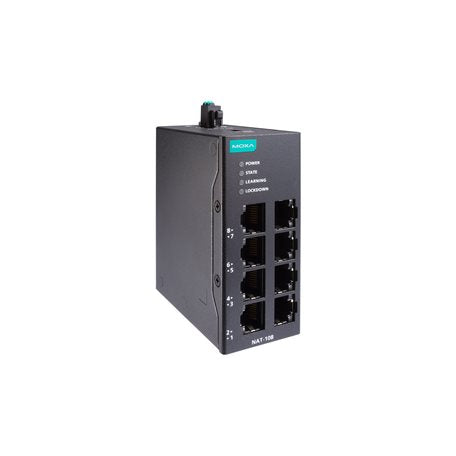

Moxa NAT-108 | Series 8-Port Industrial NAT Device, -10 to 60°C

Authorised Moxa Partner

SKU:NAT-108

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NAT-108 is an 8-port industrial NAT device and secure router designed to simplify IP configuration of machines on existing factory-automation networks. This standard temperature model operates from -10 to 60°C and supports 1-to-1 NAT with IP Twins Mapping, allowing duplicate LAN IP addresses to be remapped for conflict-free communication without reconfiguring machines.

Its ultra-compact, metal-housed DIN-rail design suits control cabinet installation, while Device Lockdown provides hands-free network access control through automatic allowlisting of locally connected devices. Secure Boot and a built-in firewall filter add a further layer of protection for operational technology networks.

Features

- User-friendly NAT functionality simplifies network integration
- NAT IP Twins Mapping remaps duplicate LAN IP addresses for conflict-free communication
- Device Lockdown provides hands-free network access control by automatically allowlisting locally connected devices
- Ultra-compact size and robust industrial design suitable for cabinet installation
- Secure Boot and trusted access control for integrated security
- Firewall filtering by IP address, MAC address and port
- Web, SSH and SNMP management with DHCP server and client support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) RJ45 ports
- IEEE 802.3, 802.3u, 802.3x flow control
- NAT modes: 1-to-1, N-to-1, port forwarding, NAT loopback, IP Twins Mapping
- Routing throughput: max. 15K packets per second (max. 100 Mbps)
- Routing table: max. 300 routing rules
- Concurrent connections: max. 30K; connections per second: max. 4.5K
- Firewall filter: IP address, MAC address, ports; port-based auto learning lock
- Management: Web console (HTTP/HTTPS), SSH, Telnet, TFTP, SNMPv1/v2c/v3, LLDP, DHCP server/client, NTP/SNTP
- Static routing
- Console: RS-232 via USB Type-C connector
- LEDs: POWER, STATE, LEARNING, LOCKDOWN
- Power input via removable terminal block with reverse polarity protection
- Metal housing, DIN-rail mount
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% (non-condensing)
- Safety: UL 62368-1; EMC: EN 55032/35, FCC Part 15B Class A

FAQs

Q: What does the Moxa NAT-108 do?
A: It is an 8-port industrial NAT device that lets you integrate machines with duplicate or fixed IP addresses into an existing factory network without reconfiguring each machine, using 1-to-1 NAT and IP Twins Mapping.

Q: What NAT modes does the NAT-108 support?
A: It supports 1-to-1 NAT, N-to-1 NAT, port forwarding, NAT loopback and IP Twins Mapping.

Q: What is the operating temperature range of this model?
A: This standard model operates from -10 to 60°C. A wide-temperature variant, the NAT-108-T, is available for -40 to 75°C environments.

Q: How is the NAT-108 mounted and powered?
A: It mounts on a DIN rail in a compact metal housing and is powered through a removable terminal block with reverse polarity protection.

Q: What is Device Lockdown?
A: Device Lockdown is an automatic access control feature that learns and allowlists locally connected devices, so only approved devices can communicate through the unit.

Q: How can the NAT-108 be managed?
A: It can be managed via a web console (HTTP/HTTPS), SSH, Telnet, TFTP or SNMPv1/v2c/v3, with a USB Type-C RS-232 console port for local access.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
