Moxa NAT-102 | 2-Port Industrial NAT Device, 100 Mbps, -10 to 60°C

Authorised Moxa Partner

SKU:NAT-102

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

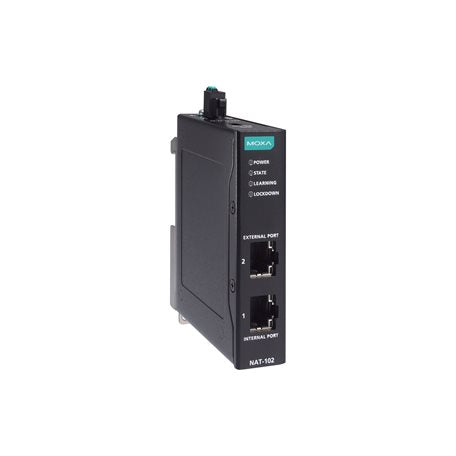

The NAT-102 is a compact 2-port industrial NAT device that simplifies IP configuration of machines in factory-automation networks. It supports 1-to-1 and N-to-1 NAT, with routing throughput of up to 15K packets per second (max. 100 Mbps) across two 10/100BaseT(X) RJ45 ports. This standard model operates across -10 to 60°C and runs from a 12/24/48 VDC supply.

Automatic whitelisting of locally connected devices provides hands-free network access control, while secure boot and a built-in firewall protect both the device and the network. The ultra-compact metal housing measures 20 x 90 x 73 mm and mounts on a DIN rail or on a wall with the optional kit, making it well suited to cabinet installation.

Features

- User-friendly NAT functionality simplifies network integration of machines
- Hands-free network access control through automatic whitelisting of locally connected devices
- Ultra-compact size and robust industrial design suited to cabinet installation
- Secure boot checks system integrity at startup
- Built-in firewall filtering by IP address, MAC address and ports
- Wide 12/24/48 VDC power input with reverse polarity protection
- DIN-rail or wall mounting for flexible installation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100BaseT(X) RJ45 ports
- Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X)
- NAT: 1-to-1 and N-to-1
- Routing throughput: 15K packets per second (max. 100 Mbps)
- Routing table: max. 32 routing rules
- Concurrent connections: max. 30K
- Connections per second: max. 4.5K
- Firewall: filter by IP address, MAC address and ports, with port-based auto learning lock
- Management: web console (HTTP/HTTPS), LLDP, Telnet, TFTP, SSH
- Security: secure boot, Trust access control
- Time management: NTP server/client, SNTP
- Unicast routing: static route
- Console: RS-232 3-pin and USB Type-C
- Input voltage: 12/24/48 VDC (9.6 to 60 VDC operating range)
- Input current: 0.196 A @ 12 VDC, 0.100 A @ 24 VDC, 0.056 A @ 48 VDC
- Power connection: removable terminal block with reverse polarity protection
- LED indicators: POWER, STATE, LEARNING, LOCKDOWN
- Housing: metal
- Dimensions: 20 x 90 x 73 mm
- Weight: 210 g
- Installation: DIN-rail mounting, wall mounting with optional kit
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Warranty period: 5 years

FAQs

Q: What NAT modes does the NAT-102 support?
A: It supports 1-to-1 and N-to-1 NAT, allowing machines with identical or conflicting IP addresses to be integrated into a plant network without reconfiguring each device.

Q: What is the operating temperature range of this model?
A: This standard model operates from -10 to 60°C. A wider -40 to 75°C range is available only on the separate NAT-102-T model.

Q: What power supply does the NAT-102 require?
A: It accepts 12/24/48 VDC input with an operating range of 9.6 to 60 VDC, connected through a removable terminal block. Reverse polarity protection is supported.

Q: How is the NAT-102 mounted?
A: It mounts on a DIN rail as standard. Wall mounting is possible using the optional wall-mount kit.

Q: What throughput can I expect?
A: Routing throughput is up to 15K packets per second (max. 100 Mbps), with up to 30K concurrent connections and up to 4.5K connections per second.

Q: How do I configure the NAT-102?
A: It can be managed through the web console over HTTP/HTTPS, or via SSH, Telnet and TFTP. A USB Type-C console port and an RS-232 console port are also provided.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
