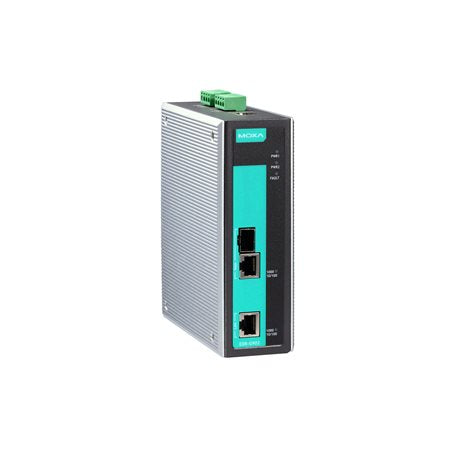

Moxa EDR-G902-T | EDR-G902 Industrial Secure Router, 1 WAN, 10 VPN, -40 to 75C

Authorised Moxa Partner

SKU:EDR-G902-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The EDR-G902-T is an industrial gigabit secure router that combines a stateful firewall, NAT, VPN server and router in a single DIN-rail unit. It provides 1 WAN combo port (10/100/1000BaseT(X) or 100/1000BaseSFP), 1 gigabit RJ45 LAN port and support for 10 VPN tunnels, making it suited to securing remote control and monitoring networks. This -T model operates across a wide -40 to 75°C temperature range for harsh environments.

PacketGuard deep packet inspection filters industrial protocols such as Modbus TCP at layer 7, and the Quick Automation Profile supports EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, Modbus TCP and PROFINET. The IP30 metal housing supports DIN-rail or wall mounting, and the design aligns with ISA99, IEC 62443 and NERC CIP requirements.

Features

- Firewall, NAT, VPN and router in one device
- Secure remote access tunnels with VPN
- Stateful firewall protects critical assets
- PacketGuard deep packet inspection filters Modbus TCP commands at layer 7
- Quick Automation Profile for EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, Modbus TCP and PROFINET
- Network Address Translation for simple network setup
- Dual WAN redundant interfaces through public networks
- VLAN support on different interfaces
- ISA99, IEC 62443 and NERC CIP compliance

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1 x 10/100/1000BaseT(X) RJ45 LAN port
- 1 x combo WAN port (10/100/1000BaseT(X) or 100/1000BaseSFP)
- 10 VPN tunnels
- 1 x RS-232 console port
- 1 relay alarm output, 1 A @ 24 VDC
- Digital input: +13 to +30 V for state 1, -30 to +3 V for state 0, max. 8 mA
- Reset button
- Operating temperature: -40 to 75°C
- IP30 metal housing
- Dimensions: 51 x 152 x 131.1 mm
- Weight: 1250 g
- DIN-rail mounting, wall mounting with optional kit
- IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x and 802.1Q VLAN tagging

FAQs

Q: What does the -T in EDR-G902-T mean?
A: The -T designates the wide temperature model, rated for operation from -40 to 75°C.

Q: How many VPN tunnels does the EDR-G902-T support?
A: It supports 10 VPN tunnels for secure remote access to control and monitoring networks.

Q: Can the WAN port use fibre?
A: Yes. The WAN port is a combo port that accepts either 10/100/1000BaseT(X) copper or a 100/1000BaseSFP fibre module.

Q: Can it inspect industrial protocols?
A: Yes. PacketGuard deep packet inspection filters industrial protocols such as Modbus TCP at OSI layer 7.

Q: How is the EDR-G902-T mounted?
A: It mounts on a DIN rail, or on a wall using the optional wall-mount kit. The housing is IP30 rated metal.

Q: Which industrial standards does it align with?
A: The design aligns with ISA99, IEC 62443 and NERC CIP requirements.
