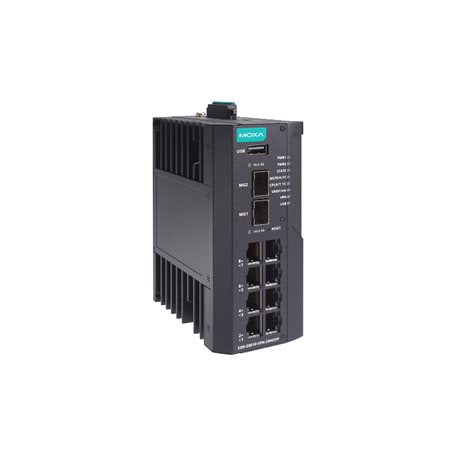

Moxa EDR-G9010-VPN-2MGSFP-CT-T | EDR-G9010 Industrial Secure Router, VPN, 2x SFP, -40 to 75C, 8x GbE

Authorised Moxa Partner

SKU:EDR-G9010-VPN-2MGSFP-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDR-G9010-VPN-2MGSFP-CT-T is a 10-port Gigabit industrial secure router that combines a next-generation firewall, NAT, IPsec VPN, router and managed Layer 2 switch in one DIN-rail unit. It provides 8 x 10/100/1000BaseT(X) RJ45 ports and 2 x 1000/2500/10000BaseSFP ports, with up to 250 IPsec VPN tunnels and routing and firewall throughput of up to 2 Gbps. The -CT-T variant adds PCB conformal coating and a -40 to 75°C operating temperature range, with redundant dual 12/24/48 VDC power inputs for harsh remote control and monitoring sites.

Deep Packet Inspection supports industrial protocols including Modbus TCP/UDP, EtherNet/IP, DNP3, IEC 61850 MMS, IEC 60870-5-104, OPC UA and Siemens S7 Comm., and an optional IPS licence adds intrusion prevention. The router carries IEC 62443-4-2 Security Level 2 and approvals for rail, power substation, hazardous location and maritime applications, making it suited to utilities, transport, oil and gas and marine networks.

Features

- 10-port Gigabit all-in-one firewall, NAT, VPN, router and switch
- Next-generation industrial firewall with IPS/IDS capability
- Deep Packet Inspection for industrial protocols such as Modbus, EtherNet/IP, DNP3 and IEC 61850
- Secure remote access tunnels with IPsec VPN
- NAT with 1-to-1, N-to-1, NAT loopback and port forwarding
- RSTP and Turbo Ring redundancy for resilient network topologies
- User-configurable DMZ ports
- Secure Boot for system integrity
- Marine cybersecurity certifications including DNV, CCS and KR
- OT security visualisation with MXsecurity management software

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100/1000BaseT(X) RJ45 ports
- 2 x 1000/2500/10000BaseSFP ports
- Routing and firewall throughput: up to 2 Gbps (350K pps)
- IPsec VPN: up to 250 concurrent tunnels, up to 800 Mbps (AES-256, SHA-256)
- VPN protocols: IPsec, L2TP (server), OpenVPN (client)
- Concurrent connections: up to 400K, up to 20K connections per second
- Routing: OSPF, RIPv1/v2, static routes, VRRP, up to 4K routing rules
- Up to 128 VLANs (VID 1 to 4094)
- Redundancy protocols: RSTP, STP, Turbo Ring v2, Turbo Chain
- Console: RS-232 (3-pin) and USB Type-C
- Redundant dual 12/24/48 VDC inputs, 9.6 to 60 VDC operating range
- Removable terminal block with reverse polarity protection
- Metal housing, IP40, DIN-rail mounting (wall mount kit optional)
- Dimensions: 58 x 135 x 105 mm, weight 1030 g
- Operating temperature: -40 to 75°C, PCB conformal coating
- Certifications: IEC 62443-4-2 SL2, EN 50121-4, NEMA TS2, IEEE 1613, IEC 61850-3, ATEX, Class I Division 2, DNV, CCS, KR
- MTBF: 1,080,807 hrs

FAQs

Q: What is the difference between the -CT-T variant and other EDR-G9010 models?
A: The -CT-T variant has PCB conformal coating and a -40 to 75°C wide operating temperature range. It offers 8 Gigabit RJ45 ports and 2 multi-gigabit SFP ports with redundant 12/24/48 VDC power inputs.

Q: How many VPN tunnels does it support?
A: It supports up to 250 concurrent IPsec VPN tunnels, with VPN throughput of up to 800 Mbps using AES-256 and SHA-256. L2TP (server) and OpenVPN (client) are also supported.

Q: Does it include intrusion prevention?
A: The router includes a next-generation industrial firewall with Deep Packet Inspection. The Intrusion Prevention System function requires an additional licence.

Q: Which industrial protocols can the Deep Packet Inspection filter?
A: It inspects protocols including Modbus TCP/UDP, EtherNet/IP, DNP3, IEC 60870-5-104, IEC 61850 MMS, MELSEC, Omron FINS, OPC UA and Siemens S7 Comm.

Q: What power inputs does it use?
A: It has redundant dual 12/24/48 VDC inputs via a removable terminal block, with an operating range of 9.6 to 60 VDC and reverse polarity protection.

Q: How is it mounted?
A: It is DIN-rail mounted as standard. An optional kit is available for wall mounting.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
