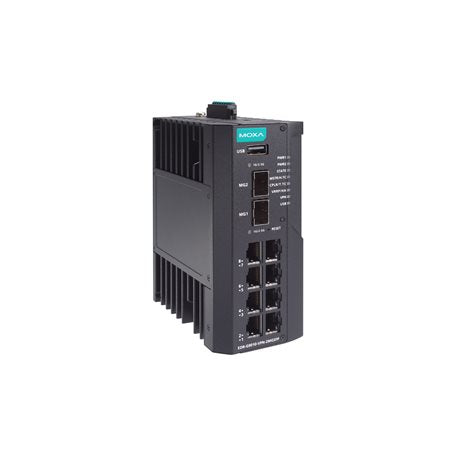

• Moxa EDR-G9010-VPN-2MGSFP-CT black industrial router with teal logo and Ethernet ports
1 1

Moxa

Moxa EDR-G9010-VPN-2MGSFP-CT | EDR-G9010 Industrial Secure Router, VPN, 2x SFP, 8x GbE

Moxa EDR-G9010-VPN-2MGSFP-CT | EDR-G9010 Industrial Secure Router, VPN, 2x SFP, 8x GbE

Authorised Moxa Partner

EDR-G9010-VPN-2MGSFP-CT

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The EDR-G9010-VPN-2MGSFP-CT is an industrial secure router with 8 x 10/100/1000BaseT(X) RJ45 ports and 2 x 1000/2500BaseSFP ports. It combines a stateful firewall, NAT and IPsec VPN with up to 250 concurrent tunnels, and its PCB conformal coating (-CT) suits harsh environments. Firewall throughput reaches 2 Gbps and VPN throughput reaches 800 Mbps (AES-256, SHA-256), with operation from -10 to 60°C.

Deep packet inspection covers Modbus TCP/UDP, EtherNet/IP, DNP3, IEC 60870-5-104, IEC 61850 MMS, OPC UA, Siemens S7, MELSEC and Omron FINS. Redundant dual 12/24/48 VDC inputs, Turbo Ring v2, Turbo Chain, RSTP and VRRP support resilient network designs, while certifications for marine, railway, power substation and hazardous-location use make it suited to critical infrastructure. It meets IEC 62443-4-2 Security Level 2.

Features

- Firewall, NAT and IPsec VPN in a single industrial router
- Deep packet inspection for industrial protocols including Modbus, EtherNet/IP, DNP3, IEC 61850 MMS and OPC UA
- Stateful firewall in router and transparent (bridge) modes
- Optional Intrusion Prevention System (requires additional licence)
- Secure Boot
- Redundant dual power inputs
- Turbo Ring v2, Turbo Chain, RSTP and VRRP redundancy
- PCB conformal coating for harsh environments
- Marine, railway, substation and hazardous-location certifications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100/1000BaseT(X) RJ45 ports
- 2 x 1000/2500BaseSFP ports
- User-configurable DMZ ports
- Firewall throughput: max. 2 Gbps / 350K pps (RFC 2544)
- VPN throughput: max. 800 Mbps / 100K pps (AES-256, SHA-256)
- Max. 250 concurrent IPsec VPN tunnels
- Max. 400K concurrent connections, 20K connections per second
- Max. 4K routing rules, 32 VLANs, 1000 IGMP groups
- IPsec encryption: DES, 3DES, AES-128, AES-192, AES-256, AES-256-GCM
- Unicast routing: OSPF, RIPv1/v2, static route; VRRP routing redundancy
- Redundancy protocols: RSTP, STP, Turbo Ring v2, Turbo Chain
- Console: RS-232 and USB Type-C; reset button
- Redundant dual 12/24/48 VDC inputs, 9.6 to 60 VDC operating, removable terminal block
- Input current: 1.51 A @ 12 VDC, 0.70 A @ 24 VDC, 0.35 A @ 48 VDC
- Metal housing, IP40, 58 x 135 x 105 mm, 1030 g
- DIN-rail mounting, wall mounting with optional kit
- Operating temperature: -10 to 60°C (DNV-certified -25 to 70°C)
- Storage temperature: -40 to 85°C, humidity 5 to 95% non-condensing
- PCB conformal coating
- Certifications: IEC 62443-4-2 SL2, EN 50121-4, NEMA TS2, IEC 60945, DNV, IEEE 1613, IEC 61850-3, ATEX, Class I Division 2
- MTBF: 1,080,807 hrs (Telcordia)

FAQs

Q: How many VPN tunnels does the EDR-G9010-VPN-2MGSFP-CT support?
A: It supports up to 250 concurrent IPsec VPN tunnels, with VPN throughput of up to 800 Mbps using AES-256 and SHA-256.

Q: What does the -CT suffix mean?
A: -CT indicates a conformal-coated PCB, which protects the circuitry in harsh environments.

Q: Is intrusion prevention included?
A: The Intrusion Prevention System is optional and requires an additional licence. Firewall, NAT and IPsec VPN are built in.

Q: Which industrial protocols can the firewall inspect?
A: Deep packet inspection covers Modbus TCP/UDP, EtherNet/IP, DNP3, IEC 60870-5-104, IEC 61850 MMS, OPC UA, Siemens S7, MELSEC and Omron FINS.

Q: What power input does it use?
A: It has redundant dual 12/24/48 VDC inputs through a removable terminal block, with an operating range of 9.6 to 60 VDC and reverse polarity protection.

Q: What are the uplink options?
A: Two 1000/2500BaseSFP ports are provided alongside the eight 10/100/1000BaseT(X) RJ45 ports, so fibre links can be added using suitable SFP modules.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
