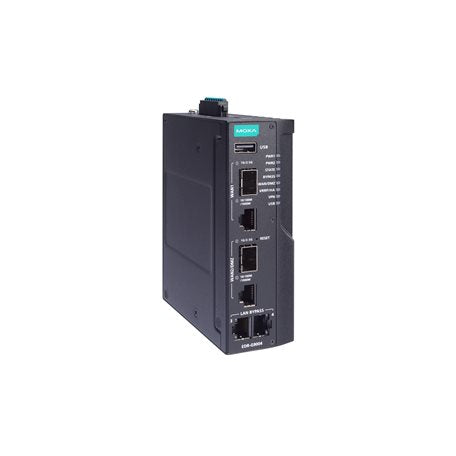

Moxa EDR-G9004-VPN-2MGTXSFP-T | EDR-G9004 Industrial Secure Router, Firewall/NAT/VPN, 2 Bypass + 2 SFP Combo

Authorised Moxa Partner

SKU:EDR-G9004-VPN-2MGTXSFP-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDR-G9004-VPN-2MGTXSFP-T is an industrial secure router with integrated firewall, NAT and VPN functions, built to protect critical remote control and monitoring networks. It provides 2 Gigabit copper ports with Gen3 Bypass and 2 Gigabit copper/SFP combo ports, in the standard model without conformal coating, rated for operation from -40 to 75°C on 12/24/48 VDC power.

Redundant dual power inputs, a rugged metal housing and a reset button suit it to harsh field and cabinet deployments. DIN-rail and wall mounting options make it straightforward to install in control panels, substations and other industrial enclosures where secure Ethernet segmentation is required.

Features

- Integrated firewall, NAT and VPN functions for Ethernet-based security applications
- Designed for critical remote control and monitoring networks
- Gen3 Bypass on 2 Gigabit copper ports
- Redundant dual power inputs
- Rugged metal body for industrial environments
- Wide operating temperature range of -40 to 75°C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100/1000BaseT(X) RJ45 ports with Gen3 Bypass
- 2 x combo ports (10/100/1000BaseT(X) or 1000BaseSFP)
- 12/24/48 VDC redundant dual power inputs
- Operating temperature: -40 to 75°C (DNV-certified for -25 to 70°C)
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Alarm contact: resistive load 1 A @ 24 VDC
- Reset button
- Metal housing
- DIN-rail and wall mounting

FAQs

Q: What type of ports does the EDR-G9004-VPN-2MGTXSFP-T have?
A: It has 2 x 10/100/1000BaseT(X) RJ45 ports with Gen3 Bypass and 2 x combo ports that support either 10/100/1000BaseT(X) copper or 1000BaseSFP fibre.

Q: What power input does this router use?
A: It accepts 12/24/48 VDC through redundant dual power inputs, so it can stay powered if one supply fails.

Q: What operating temperature range is supported?
A: This model operates from -40 to 75°C, and is DNV-certified for -25 to 70°C.

Q: Does this model include conformal coating?
A: No. This is the standard model without conformal coating.

Q: How is the router mounted?
A: It supports both DIN-rail and wall mounting, and has a metal housing suited to industrial cabinets.

Q: What security functions are built in?
A: It integrates firewall, NAT and VPN functions to secure Ethernet-based critical remote control and monitoring networks.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
