Description

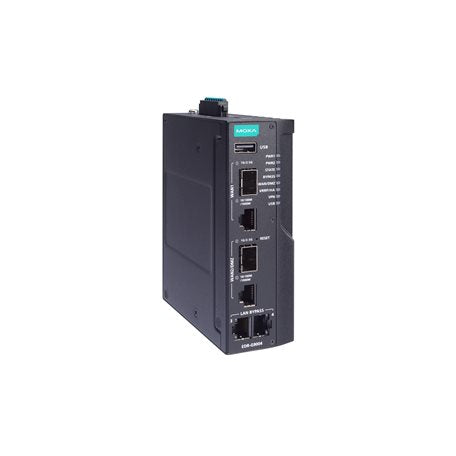

The Moxa EDR-G9004-VPN-2MGTXSFP is an industrial secure router that combines firewall, NAT and VPN in a single rugged metal unit. It provides 2 Gigabit copper ports with Gen3 LAN Bypass and 2 Gigabit copper/SFP combo ports, and runs from a 12/24/48 VDC supply across a standard -10 to 60°C operating range. IDS/IPS threat detection from the EDR-G9004 series adds industrial next-generation firewall protection at the network edge.

This model suits control networks, remote sites and cell-to-enterprise boundaries where the router must segment and protect industrial assets. Redundant dual power inputs, DIN-rail and wall mounting, and a console port (RS-232, 3-pin / USB Type-C) make it practical to deploy and service in cabinets and substations.

Features

- Firewall, NAT (1-to-1, N-to-1, NAT loopback, port forwarding) and VPN
- IDS/IPS threat detection and prevention for industrial next-generation firewall protection
- Real-time firewall/VPN event log with local storage, SNMP Trap and Syslog
- Gen3 LAN bypass on the copper ports
- Rugged metal housing with DIN-rail and wall mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100/1000BaseT(X) Gigabit copper ports (RJ45) with Gen3 Bypass
- 2 x Gigabit combo ports (10/100/1000BaseT(X) or 1000BaseSFP)
- 12/24/48 VDC input voltage with redundant dual power inputs
- Operating temperature: -10 to 60°C (standard temperature)
- Firewall, NAT and VPN support
- Metal body, DIN-rail and wall mounting
- Console: RS-232, 3-pin / USB Type-C

FAQs

Q: What port types does the EDR-G9004-VPN-2MGTXSFP have?
A: It has 2 x 10/100/1000BaseT(X) Gigabit copper RJ45 ports with Gen3 Bypass and 2 x Gigabit combo ports that accept either 10/100/1000BaseT(X) copper or 1000BaseSFP fibre.

Q: What power input does it support?
A: It accepts 12/24/48 VDC and provides redundant dual power inputs.

Q: What is the operating temperature range?
A: This is the standard temperature model, rated for -10 to 60°C.

Q: Does it support VPN and firewall functions?
A: Yes. It provides firewall, NAT (1-to-1, N-to-1, NAT loopback, port forwarding) and VPN, with IDS/IPS threat detection in the EDR-G9004 series.

Q: How is the router mounted?
A: It has a metal body that supports both DIN-rail and wall mounting.

Q: How are firewall and VPN events logged?
A: Events are recorded in a real-time log with local storage and can be sent via SNMP Trap and Syslog.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
