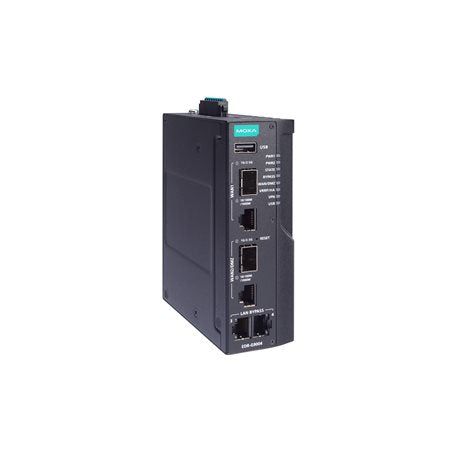

Moxa EDR-G9004-VPN-2MGTXSFP-CT-T | EDR-G9004 Industrial Secure Router, VPN, Conformal Coating, -40 to 75C

Authorised Moxa Partner

SKU:EDR-G9004-VPN-2MGTXSFP-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDR-G9004-VPN-2MGTXSFP-CT-T is an industrial secure router that combines firewall, NAT and VPN in a single DIN-rail unit. This coated model is built for harsh sites, with a conformal coating, a -40 to 75°C wide operating temperature range and redundant 12/24/48 VDC power inputs. It provides 2 Gigabit RJ45 ports with Gen3 LAN Bypass and 2 combo ports that take either 10/100/1000BaseT(X) copper or 1000/2500BaseSFP fibre, with support for up to 250 IPsec VPN tunnels.

Routing throughput reaches 2 Gbps with up to 400K concurrent connections, and the router supports OSPF, RIPv1/v2, static routing and VRRP. Deep packet inspection for industrial protocols such as Modbus, DNP3, IEC 61850 MMS, EtherNet/IP and OPC UA, optional IPS (licence required) and MXsecurity management support help protect OT networks. The IP40 metal housing and broad certifications, including DNV, IEC 61850-3, IEEE 1613 and EN 50121-4, suit utilities, transport and process automation. SFP modules are sold separately.

Features

- All-in-one 4-port Gigabit firewall, NAT, VPN and router
- Gen3 LAN Bypass for system fault tolerance
- Dual WAN redundant interfaces over public networks
- Next-generation industrial firewall with IPS/IDS (IPS requires a licence)
- Deep Packet Inspection for Modbus, DNP3, IEC 61850 MMS, EtherNet/IP and OPC UA
- NAT with 1-to-1, N-to-1, loopback and port forwarding
- Secure remote access tunnels over VPN
- Developed to IEC 62443-4-2 with Secure Boot
- Virtual patching and intelligent threat protection
- OT security visualisation with MXsecurity management software
- Conformal coating and -40 to 75°C wide operating temperature
- Certifications include DNV, IEC 61850-3, IEEE 1613, EN 50121-4, NEMA TS2, ATEX, Class I Div 2 and IECEx

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100/1000BaseT(X) RJ45 ports with Gen3 LAN Bypass
- 2 x combo ports, 10/100/1000BaseT(X) or 1000/2500BaseSFP
- Firewall, NAT and VPN with up to 250 concurrent IPsec VPN tunnels
- IPsec VPN throughput: max. 100K pps / 800 Mbps (AES-256, SHA-256)
- Routing throughput: max. 350K pps / 2 Gbps (RFC 2544)
- Concurrent connections: max. 400K; connections per second: max. 20K
- Routing table: max. 4K routing rules
- Unicast routing: OSPF, RIPv1/v2, static route; redundancy: VRRP
- Input voltage: 12/24/48 VDC, redundant dual inputs; operating voltage 9.6 to 60 VDC
- Operating temperature: -40 to 75°C; storage -40 to 85°C
- Humidity: 5 to 95% non-condensing; conformal coating
- Console: USB Type-C connector (RS-232)
- IP40 metal housing, 45 x 135 x 105 mm, 800 g
- DIN-rail mounting, wall mounting with optional kit
- MTBF: 1,876,185 hrs; 5 year manufacturer warranty period listed by Moxa

FAQs

Q: What does the CT-T suffix mean on this model?
A: CT indicates conformal coating on the circuit boards and T indicates the wide operating temperature range of -40 to 75°C. It is suited to harsh or humid industrial environments.

Q: Are SFP modules included?
A: No. The package contains the router, a DB9 female to USB Type-C cable, a quick installation guide and a warranty card. SFP modules are sold separately.

Q: How many VPN tunnels does it support?
A: It supports up to 250 concurrent IPsec VPN tunnels, with throughput up to 800 Mbps using AES-256 and SHA-256.

Q: What power inputs does it accept?
A: It has redundant dual 12/24/48 VDC inputs on a removable terminal block, with an operating voltage range of 9.6 to 60 VDC and reverse polarity protection.

Q: Does it need a licence for intrusion prevention?
A: Yes. The IPS function, with throughput up to 2 Gbps, requires an additional licence. The firewall, NAT and VPN functions are built in.

Q: What is Gen3 LAN Bypass?
A: The two RJ45 ports with Gen3 LAN Bypass let traffic keep passing between them if the router faults or loses power, improving fault tolerance on critical network segments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
