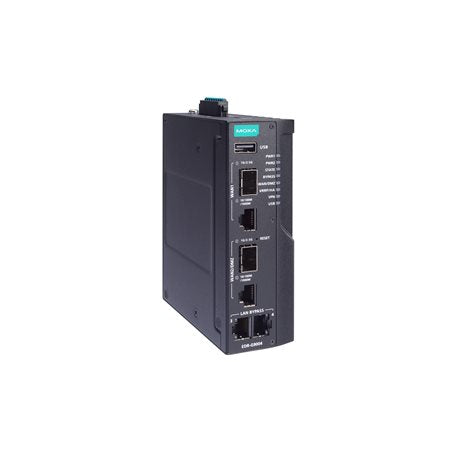

Moxa EDR-G9004-VPN-2MGTXSFP-CT | EDR-G9004 Industrial Secure Router, VPN, Conformal Coating, 12/24/48 VDC

Authorised Moxa Partner

SKU:EDR-G9004-VPN-2MGTXSFP-CT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDR-G9004-VPN-2MGTXSFP-CT is an EDR-G9004 series industrial secure router that combines firewall, NAT and IPsec VPN in a single DIN-rail unit. It provides four Gigabit ports, with 2 copper RJ45 ports featuring Gen3 LAN Bypass and 2 copper/SFP combo ports, and supports up to 250 concurrent IPsec VPN tunnels. This CT variant adds conformal coating, operates from -10 to 60 C and accepts 12/24/48 VDC redundant dual power inputs.

Deep Packet Inspection covers industrial protocols including Modbus TCP/UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP and OPC UA, while an optional licensed IPS adds threat protection. The metal IP40 housing, reverse polarity protection and dual WAN redundancy suit substations, factory automation and other critical industrial networks. It runs MX-ROS with web and CLI management and can be managed centrally with MXsecurity software.

Features

- All-in-one 4-port Gigabit firewall, NAT, VPN and router
- Gen3 LAN Bypass for system fault tolerance
- Dual WAN redundant interfaces
- Next-generation industrial firewall with IPS/IDS (IPS requires an additional licence)
- Deep Packet Inspection for industrial protocols including Modbus, DNP3, IEC 61850 and EtherNet/IP
- Secure remote access with IPsec VPN
- Developed according to IEC 62443-4-2 with Secure Boot
- Centralised visual management with MXsecurity software
- Virtual patching and intelligent threat protection
- MX-ROS with web and CLI interfaces

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100/1000BaseT(X) RJ45 ports with Gen3 LAN Bypass
- 2 x combo ports (10/100/1000BaseT(X) or 1000/2500BaseSFP)
- Firewall, NAT and VPN with up to 250 concurrent IPsec VPN tunnels
- Routing and firewall throughput: max. 350K pps / 2 Gbps (RFC 2544)
- IPsec VPN throughput (AES-256, SHA-256): max. 100K pps / 800 Mbps
- Max. 400K concurrent connections, 20K connections per second
- Max. 4K routing rules; OSPF, RIPv1/v2, static routing, VRRP
- IPsec VPN encryption: DES, 3DES, AES-128, AES-192, AES-256, AES-256-GCM
- Input voltage: 12/24/48 VDC redundant dual inputs, 9.6 to 60 VDC operating
- Input current: 1.01 A @ 12 VDC, 0.51 A @ 24 VDC, 0.27 A @ 48 VDC
- Conformal coating (CT model)
- Operating temperature: -10 to 60 C, storage -40 to 85 C
- Metal housing, IP40, DIN-rail mounting, wall mounting with optional kit
- Dimensions: 45 x 135 x 105 mm, weight 800 g
- Console: USB Type-C connector (RS-232 signalling), reset button
- MTBF: 1,876,185 hrs (Telcordia)
- SFP modules sold separately

FAQs

Q: What does the CT suffix mean on this router?
A: CT denotes conformal coating on the circuit board, which helps protect the unit in harsher environments. This model operates from -10 to 60 C.

Q: Are SFP modules included?
A: No. The two combo ports accept 1000/2500BaseSFP modules, which are sold separately. The ports can also be used as 10/100/1000BaseT(X) copper.

Q: What power supply does it require?
A: It accepts 12/24/48 VDC on redundant dual inputs, with an operating range of 9.6 to 60 VDC, via a removable terminal block. Reverse polarity protection is supported.

Q: How many VPN tunnels does it support?
A: It supports up to 250 concurrent IPsec VPN tunnels, with AES-256-GCM among the supported encryption options.

Q: Is the IPS feature included?
A: IPS/IDS is supported but requires an additional licence. Firewall, NAT, VPN and Deep Packet Inspection for industrial protocols are built into the router.

Q: What is Gen3 LAN Bypass?
A: Gen3 LAN Bypass on the two RJ45 ports provides fault tolerance if the router fails, so traffic can continue to pass through those ports.

Q: How is it mounted?
A: It mounts on a DIN rail, and wall mounting is possible with an optional kit. The housing is metal with an IP40 rating.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
