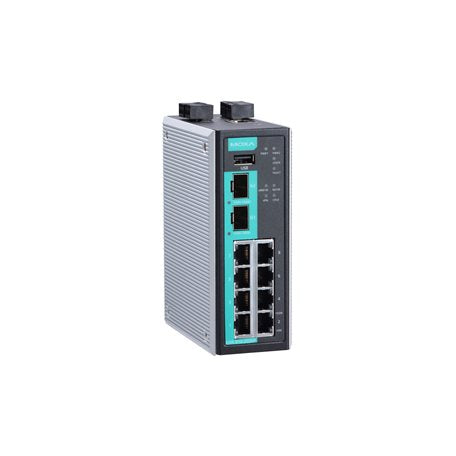

Moxa EDR-810-VPN-2GSFP-T | EDR-810 Industrial Secure Router, VPN, -40 to 75C, 2x GbE SFP

Authorised Moxa Partner

SKU:EDR-810-VPN-2GSFP-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The EDR-810 industrial secure router combines a stateful firewall, NAT, VPN, routing and managed Layer 2 switching in a single DIN-rail device. This VPN model provides 8 Fast Ethernet RJ45 ports and 2 Gigabit SFP slots, supports up to 10 IPsec tunnels with AES-256 plus OpenVPN client and server, and uses a wide temperature design rated for -40 to 75°C operation.

The firewall inspects industrial protocols including Modbus TCP and Modbus UDP using PacketGuard technology, while RSTP, Turbo Ring v2 and VRRP support network redundancy. A metal housing, redundant 12 to 48 VDC power input and approvals including ATEX, Class I Division 2, DNV, EN 50121-4 and IEC 61162-460 make it suited to harsh industrial, marine and rail environments.

Features

- All-in-one 8+2G firewall, NAT, VPN, router and switch
- Secure remote access tunnels with IPsec and OpenVPN
- Stateful firewall protects critical industrial assets
- PacketGuard technology inspects industrial protocols such as Modbus TCP
- Simple network integration with 1-to-1, N-to-1 and port forwarding NAT
- RSTP and Turbo Ring v2 redundancy protocols
- Wide -40 to 75°C operating temperature range
- Security features based on IEC 62443 and NERC CIP
- Compliant with the IEC 61162-460 marine cybersecurity standard
- SettingCheck feature helps verify firewall settings

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) RJ45 ports
- 2 x 100/1000BaseSFP slots
- IPsec VPN: max. 10 concurrent tunnels, DES, 3DES, AES-128/192/256 encryption
- IPsec throughput: max. 17 Mbps (AES-256, SHA-256)
- OpenVPN: client mode max. 2 external servers, server mode max. 5 external clients
- OpenVPN throughput: max. 5 Mbps
- Firewall and routing throughput: max. 10,000 packets per second (max. 100 Mbps)
- Firewall deep packet inspection: Modbus TCP, Modbus UDP
- NAT: 1-to-1, N-to-1, port forwarding
- Unicast routing: OSPF, RIPv1/v2, static route
- Multicast routing: DVMRP, PIM-SM, PIM-SSM
- Redundancy: RSTP, STP, Turbo Ring v2, VRRP
- VLAN: 802.1Q tagging, VID 1 to 4094, max. 16 VLANs
- Power input: 12 to 48 VDC, redundant, removable terminal block, 0.706 A @ 12 VDC
- Reverse polarity protection supported
- Console port: RS-232, 3-pin
- Housing: metal
- Dimensions: 53.6 x 135 x 105 mm
- Weight: 830 g
- Mounting: DIN-rail, wall mounting with optional kit
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Relative humidity: 5 to 95% (non-condensing)
- Approvals: UL 508, ATEX, Class I Division 2, DNV, EN 50121-4, NEMA TS2, IEC 61162-460
- MTBF: 981,954 hours
- Warranty period: 5 years

FAQs

Q: What ports does the EDR-810-VPN-2GSFP-T provide?
A: It provides 8 x 10/100BaseT(X) RJ45 ports and 2 x 100/1000BaseSFP slots, so you can add fibre or copper SFP modules for Gigabit uplinks.

Q: How many VPN tunnels does it support?
A: It supports up to 10 concurrent IPsec tunnels with AES-256 encryption. For OpenVPN, client mode connects to up to 2 external servers and server mode accepts up to 5 external clients.

Q: What temperature range can it operate in?
A: The -T wide temperature model operates from -40 to 75°C, making it suited to outdoor cabinets, factory floors and other harsh environments.

Q: Does the firewall understand industrial protocols?
A: Yes. PacketGuard technology provides deep packet inspection for Modbus TCP and Modbus UDP, allowing industrial traffic to be filtered at the protocol level.

Q: How is the router powered and mounted?
A: It accepts a redundant 12 to 48 VDC input through a removable terminal block and mounts on a DIN rail. Wall mounting is possible with the optional kit.

Q: Is it suitable for marine and rail installations?
A: It carries DNV (maritime) and EN 50121-4 (railway) approvals, and complies with the IEC 61162-460 marine cybersecurity standard.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
