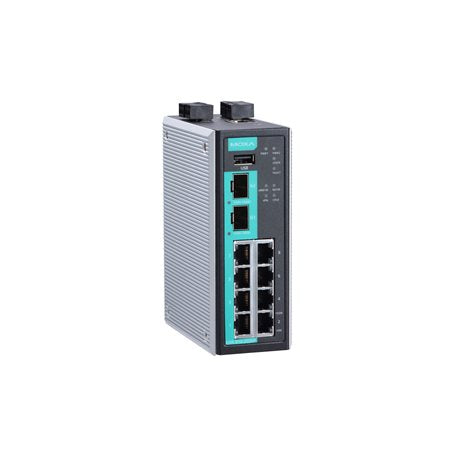

• Moxa EDR-810-VPN-2GSFP industrial router with 8 Ethernet ports, 2 USB, gray chassis
1 1

Moxa

Moxa EDR-810-VPN-2GSFP | EDR-810 Industrial Secure VPN Router, 8x FE + 2x GbE SFP

Moxa EDR-810-VPN-2GSFP | EDR-810 Industrial Secure VPN Router, 8x FE + 2x GbE SFP

Authorised Moxa Partner

EDR-810-VPN-2GSFP

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa EDR-810-VPN-2GSFP is an industrial secure VPN router that combines a firewall, NAT, VPN, router and managed Layer 2 switch in a single DIN-rail unit. It provides 8 x 10/100BaseT(X) RJ45 ports and 2 x 100/1000BaseSFP slots, with IPsec and OpenVPN support for secure remote access at the standard -10 to 60°C operating range.

IPsec VPN supports up to 10 concurrent tunnels at up to 17 Mbps (AES-256, SHA-256), while OpenVPN supports client and server modes at up to 5 Mbps. A stateful firewall with PacketGuard deep packet inspection of Modbus TCP and UDP helps protect critical assets, and RSTP, Turbo Ring v2 and VRRP provide network and routing redundancy. Redundant 12 to 48 VDC power inputs and a rugged metal housing suit control cabinets and industrial automation networks.

Features

- 8+2G all-in-one firewall, NAT, VPN, router and switch
- Secure remote access tunnels with IPsec and OpenVPN
- Stateful firewall protects critical assets
- PacketGuard industrial protocol inspection including deep Modbus TCP packet inspection
- Network Address Translation (NAT) for simple network integration
- RSTP and Turbo Ring redundancy protocols
- Security features based on IEC 62443 and NERC CIP
- Compliant with the IEC 61162-460 marine cybersecurity standard
- SettingCheck feature to verify firewall settings
- WAN Routing Quick Setting and Quick Automation Profile for EtherNet/IP, Modbus TCP, EtherCAT, FOUNDATION Fieldbus and PROFINET filtering

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) RJ45 ports
- 2 x 100/1000BaseSFP slots
- Firewall, NAT, VPN, router and managed switch in one unit
- IPsec VPN: max. 10 tunnels, max. 17 Mbps (AES-256, SHA-256)
- OpenVPN: client (max. 2 servers) and server (max. 5 clients), max. 5 Mbps
- Routing and firewall throughput: 10,000 packets per second (max. 100 Mbps)
- Routing: static, RIPv1/v2, OSPF; multicast DVMRP, PIM-SM, PIM-SSM; VRRP
- Redundancy: RSTP, STP, Turbo Ring v2
- VLAN: 802.1Q tagging, VID 1 to 4094, max. 16 VLANs
- Input voltage: 12 to 48 VDC, redundant inputs, removable terminal block
- Reverse polarity protection supported
- Operating temperature: -10 to 60°C (standard temperature model)
- Metal housing, DIN-rail mounting, wall mounting with optional kit
- Dimensions: 53.6 x 135 x 105 mm, weight 830 g
- Console port: RS-232, 3-pin
- Certifications include UL 508, ATEX, Class I Division 2, DNV, EN 50121-4, NEMA TS2, IEC 61162-460

FAQs

Q: What ports does the EDR-810-VPN-2GSFP provide?
A: It has 8 x 10/100BaseT(X) RJ45 copper ports and 2 x 100/1000BaseSFP slots for fibre or gigabit copper SFP modules.

Q: How many VPN tunnels does it support?
A: IPsec VPN supports up to 10 concurrent tunnels at up to 17 Mbps (AES-256, SHA-256). OpenVPN supports client mode to a maximum of 2 external servers and server mode with a maximum of 5 external clients, at up to 5 Mbps.

Q: What operating temperature range does this model support?
A: This is the standard temperature model, rated for -10 to 60°C.

Q: How is the router powered?
A: It has redundant 12 to 48 VDC power inputs (PWR1 and PWR2) on a removable terminal block, with reverse polarity protection.

Q: Can it inspect industrial protocols?
A: Yes. PacketGuard technology and deep packet inspection cover Modbus TCP and Modbus UDP, and the Quick Automation Profile provides firewall filtering for common industrial protocols such as EtherNet/IP, PROFINET and EtherCAT.

Q: How is it mounted?
A: It mounts on a DIN rail as standard in a compact metal housing, and can be wall mounted with an optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
