Moxa EDR-810-2GSFP-T | EDR-810 Industrial Secure Router, 2x SFP, -40 to 75C

Moxa EDR-810-2GSFP-T | EDR-810 Industrial Secure Router, 2x SFP, -40 to 75C

Authorised Moxa Partner

EDR-810-2GSFP-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

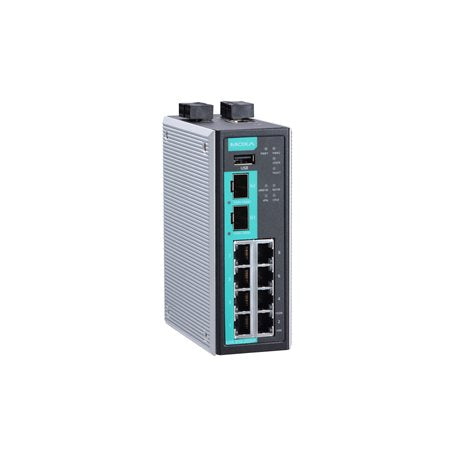

The EDR-810-2GSFP-T is an EDR-810 industrial secure router that combines a stateful firewall, NAT, routing and managed Layer 2 switching in one DIN-rail unit. It provides 8 Fast Ethernet RJ45 ports and 2 Gigabit SFP slots, and this Firewall/NAT model without VPN is the wide temperature variant rated for -40 to 75°C operation.

Built for factory automation, utilities, transport and marine networks, it offers deep packet inspection for Modbus TCP and Modbus UDP, RSTP and Turbo Ring v2 redundancy, and VRRP routing redundancy. A metal housing, 12 to 48 VDC redundant power input and certifications including ATEX, Class I Division 2, DNV and EN 50121-4 suit demanding installations. SFP modules are sold separately.

Features

- All-in-one firewall, NAT, router and managed switch with 8 Fast Ethernet and 2 Gigabit SFP ports
- Stateful inspection router firewall and transparent (bridge) firewall modes
- PacketGuard technology with deep packet inspection for Modbus TCP and Modbus UDP
- NAT support including 1-to-1, N-to-1 and port forwarding for simple network integration
- RSTP and Turbo Ring v2 redundancy, plus VRRP routing redundancy
- Security features based on IEC 62443 and NERC CIP, with HTTPS/SSL, SSH and RADIUS support
- Compliant with the IEC 61162-460 marine cybersecurity standard
- SettingCheck feature validates firewall settings
- Wide -40 to 75°C operating range for harsh industrial environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) RJ45 ports
- 2 x 100/1000BaseSFP slots (SFP modules sold separately)
- Firewall/NAT model, no VPN
- Routing throughput: 10,000 packets per second (max. 100 Mbps)
- Operating temperature: -40 to 75°C (wide temperature model)
- Input voltage: 12 to 48 VDC via removable terminal block, reverse polarity protection
- Redundancy: RSTP, STP, Turbo Ring v2, VRRP
- Unicast routing: OSPF, RIPv1/v2, static route
- Multicast routing: DVMRP, PIM-SM, PIM-SSM
- Up to 16 VLANs, VID 1 to 4094
- Console port: RS-232, 3-pin
- Metal housing, DIN-rail mounting, wall mounting with optional kit
- Dimensions: 53.6 x 135 x 105 mm, weight 830 g
- Safety and hazardous locations: UL 508, ATEX, Class I Division 2
- Other certifications: DNV, NEMA TS2, EN 50121-4, IEC 61162-460
- MTBF: 981,954 hrs (Telcordia)

FAQs

Q: Does the EDR-810-2GSFP-T support VPN?
A: No. This model is the Firewall/NAT variant without VPN. It includes a stateful firewall, NAT and routing, along with HTTPS/SSL, SSH, L2TP (server) and RADIUS for secure management and access.

Q: What operating temperature range does it support?
A: The -T suffix denotes the wide temperature model, rated for -40 to 75°C (-40 to 167°F) operation, with storage rated from -40 to 85°C.

Q: Are SFP modules included?
A: No. The two 100/1000BaseSFP slots ship with dust caps and SFP modules must be purchased separately to suit your fibre or copper link requirements.

Q: What power input does it use?
A: It accepts 12 to 48 VDC through a removable terminal block with reverse polarity protection. Input current is 0.706 A at 12 VDC, 0.353 A at 24 VDC and 0.187 A at 48 VDC.

Q: Can it inspect industrial protocol traffic?
A: Yes. PacketGuard technology provides deep packet inspection for Modbus TCP and Modbus UDP, letting you filter industrial traffic at the protocol level.

Q: How is it mounted?
A: The metal housing is designed for DIN-rail mounting. Wall mounting is possible with an optional mounting kit.
