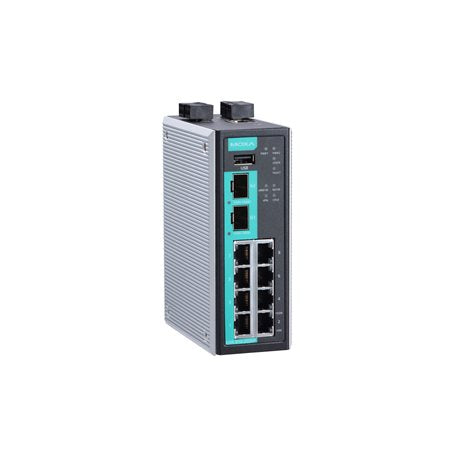

Moxa EDR-810-2GSFP | EDR-810 Industrial Secure Router, 8x RJ45, 2x SFP, No VPN

Authorised Moxa Partner

SKU:EDR-810-2GSFP

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDR-810-2GSFP is an industrial multiport secure router that combines a stateful firewall, NAT, routing and a managed Layer 2 switch in one DIN-rail device. This no-VPN, standard-temperature model provides 8 x 10/100BaseT(X) RJ45 ports and 2 x 100/1000BaseSFP slots, and is built to create an electronic security perimeter around critical remote control and monitoring networks. It operates from -10 to 60°C.

The EDR-810 series supports both stateful inspection router firewall and transparent bridge firewall modes, NAT with N-to-1, 1-to-1 and port-forwarding options, and VRRP routing redundancy. PacketGuard technology inspects industrial protocols such as Modbus TCP and EtherNet/IP, while RSTP and Turbo Ring provide network redundancy. Security features are based on IEC 62443 and NERC CIP, and the series is compliant with the IEC 61162-460 marine cybersecurity standard.

Features

- 8+2G all-in-one firewall, NAT, router and switch
- Stateful firewall protects critical assets
- PacketGuard technology inspects industrial protocols including EtherNet/IP, Modbus TCP, EtherCAT and FOUNDATION Fieldbus
- Simple network integration with Network Address Translation
- RSTP and Turbo Ring redundancy for network resilience
- Security features based on IEC 62443 and NERC CIP
- Compliant with IEC 61162-460 marine cybersecurity standard
- SettingCheck feature verifies firewall settings

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) RJ45 ports
- 2 x 100/1000BaseSFP slots (SFP modules sold separately)
- 1 WAN port, up to 15 LAN interfaces supported
- Routing throughput: max. 10,000 packets per second (max. 100 Mbps)
- Routing redundancy: VRRP
- Stateful inspection router firewall and transparent (bridge) firewall
- NAT modes: N-to-1, 1-to-1 and port forwarding
- Security protocols: HTTPS/SSL, SSH, L2TP (server), RADIUS
- Redundancy: RSTP and Turbo Ring
- Operating temperature: -10 to 60°C
- Digital input and alarm contact (relay) channels
- Reset button and USB port for ABC-02 configuration backup
- VPN: not included in this model

FAQs

Q: Does the EDR-810-2GSFP support VPN?
A: No. This is the non-VPN model. VPN functions such as IPsec and OpenVPN are available only on the EDR-810-VPN-2GSFP models.

Q: Are SFP modules included?
A: No. The two 100/1000BaseSFP slots are empty and SFP modules must be purchased separately.

Q: What is the operating temperature range?
A: This standard model operates from -10 to 60°C. The wide-temperature -T variant covers -40 to 75°C.

Q: Which firewall modes does it support?
A: It supports a stateful inspection router firewall and a transparent bridge firewall, with PacketGuard inspection of industrial protocols such as Modbus TCP and EtherNet/IP.

Q: How can I back up the router configuration?
A: The USB port supports the Moxa ABC-02 backup configurator for saving and restoring device configuration.

Q: What redundancy options are available?
A: The router supports VRRP for routing redundancy, and RSTP or Turbo Ring for Layer 2 network redundancy.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
