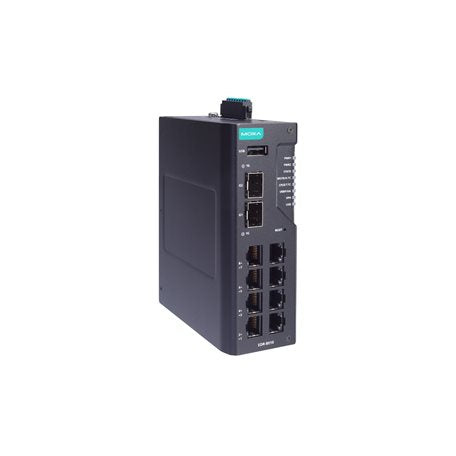

Moxa EDR-8010-VPN-2GSFP-T | EDR-8010 Industrial Secure Router, VPN, 8 FE + 2x GbE SFP, -40 to 75C

Authorised Moxa Partner

SKU:EDR-8010-VPN-2GSFP-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDR-8010-VPN-2GSFP-T is an EDR-8010 industrial secure router that combines a firewall, NAT, IPsec VPN, routing and managed Layer 2 switching in one compact DIN-rail unit. It provides 8 Fast Ethernet RJ45 ports and 2 Gigabit SFP slots, and this VPN model is built to operate across a -40 to 75°C range without conformal coating, making it suited to secure remote access and OT network segmentation in harsh environments.

Redundant dual 12/24/48 VDC power inputs, a metal IP40 housing and reverse polarity protection support dependable deployment in industrial cabinets. It includes an industrial-grade IPS/IDS, deep packet inspection for industrial protocols, and marine cybersecurity certification to IACS UR E27 Rev.1 and IEC 61162-460 Edition 3.0. It can be managed centrally with MXsecurity software to visualise OT security.

Features

- All-in-one firewall, NAT, VPN, router and managed switch with 8 FE and 2 GbE ports
- Secure remote access tunnels with IPsec VPN and L2TP server
- Industrial-grade Intrusion Prevention/Detection System (IPS/IDS)
- Deep Packet Inspection (DPI) for industrial protocols
- Certified to IACS UR E27 Rev.1 and IEC 61162-460 Edition 3.0 marine cybersecurity standards
- Secure Boot, RADIUS, TACACS+, SCP/SFTP, NTP authentication and Syslog support
- Layer 2 and routing redundancy with RSTP, Turbo Ring v2, Turbo Chain and VRRP
- Visualise OT security with MXsecurity management software
- Wide -40 to 75°C operating range with redundant dual power inputs
- Approvals include EN 50121-4 railway, NEMA TS2, IEC 61850-3 Ed. 2 / IEEE 1613 power substation and ATEX Class I Div 2 / IECEx

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Ethernet ports: 8 x 10/100BaseT(X) RJ45
- SFP slots: 2 x 1000BaseSFP
- VPN support: Yes
- Conformal coating: No
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Console port: USB Type-C (RS-232 serial console)
- Alarm contact: Resistive load 1 A @ 24 VDC
- Input voltage: 12/24/48 VDC, redundant dual inputs (9.6 to 60 VDC operating)
- Input current: 0.53 A @ 12 VDC, 0.26 A @ 24 VDC, 0.14 A @ 48 VDC
- Power consumption: 6.36 W (max.)
- Power connection: Removable terminal block with reverse polarity protection
- Routing throughput: Max. 50K packets per second / 500 Mbps (RFC 2544)
- Routing table: Max. 4K routing rules
- Concurrent connections: Max. 120K (RFC 3511)
- Connections per second: Max. 6K (RFC 3511)
- Redundancy protocols: RSTP, STP, Turbo Ring v2, Turbo Chain, VRRP
- Unicast routing: OSPF, RIPv1/v2, static route
- Housing: Metal, IP40
- Dimensions: 45 x 135 x 105 mm
- Weight: 520 g
- Installation: DIN-rail mounting, wall mounting with optional kit

FAQs

Q: Does the EDR-8010-VPN-2GSFP-T support VPN?
A: Yes. This is the VPN model of the EDR-8010 series and supports IPsec VPN and an L2TP server for secure remote access tunnels.

Q: What ports does this router provide?
A: It has 8 x 10/100BaseT(X) RJ45 Fast Ethernet ports and 2 x 1000BaseSFP slots for Gigabit fibre or copper SFP modules.

Q: What operating temperature range does it support?
A: The -T model operates from -40 to 75°C. It does not have conformal coating.

Q: How is the router powered?
A: It accepts redundant dual 12/24/48 VDC inputs through a removable terminal block, with an operating range of 9.6 to 60 VDC and reverse polarity protection.

Q: How is it mounted?
A: It is DIN-rail mountable in a metal IP40 housing. Wall mounting is possible with an optional kit.

Q: Which redundancy and routing protocols are supported?
A: It supports RSTP, STP, Turbo Ring v2 and Turbo Chain for network redundancy, VRRP for routing redundancy, and OSPF, RIPv1/v2 and static routes for unicast routing.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
