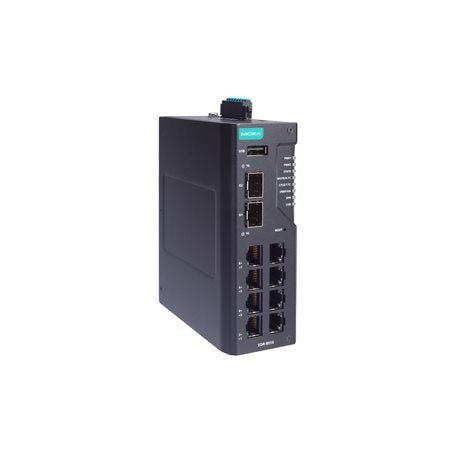

Moxa EDR-8010-VPN-2GSFP | EDR-8010 Industrial Secure Router, 8 FE, 2 GbE SFP, VPN

Authorised Moxa Partner

SKU:EDR-8010-VPN-2GSFP

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDR-8010-VPN-2GSFP is an industrial secure router that combines a firewall, NAT, IPsec VPN, routing and managed Layer 2 switching in one DIN-rail device. It provides 8 x 10/100BaseT(X) RJ45 ports and 2 x 1000BaseSFP slots, supports up to 50 concurrent IPsec VPN tunnels, and is the standard-temperature VPN model rated for -10 to 60°C. It is built to protect critical OT networks such as substations, water stations and factory automation.

Firewall throughput reaches 1000 Mbps and routing throughput 500 Mbps, with deep packet inspection for industrial protocols including Modbus, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, OPC UA and Siemens S7. Redundant 12/24/48 VDC dual power inputs, RSTP and Turbo Ring redundancy, VRRP routing redundancy and a metal IP40 housing suit demanding industrial and marine environments.

Features

- Next-generation industrial firewall with IPS/IDS (IPS requires additional licence)
- All-in-one firewall, NAT, VPN, router and managed switch
- Secure remote access tunnels with IPsec VPN
- Deep packet inspection for industrial protocols including Modbus, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, OPC UA and Siemens S7
- NAT options including 1-to-1, N-to-1, port forwarding and NAT loopback
- RSTP and Turbo Ring redundancy with VRRP routing redundancy
- Marine cybersecurity certified (IACS UR E27 Rev.1 and IEC 61162-460 Ed. 3.0)
- Visualise OT security with MXsecurity management software
- Virtual patching and intelligent IPS threat protection
- Setup Wizard for WAN, LAN and bridge configuration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) RJ45 ports
- 2 x 1000BaseSFP slots
- User-configurable DMZ ports
- Up to 50 concurrent IPsec VPN tunnels
- VPN throughput (AES-256, SHA-256): max. 300 Mbps
- Firewall throughput: max. 1000 Mbps (80K pps)
- Routing throughput: max. 500 Mbps (50K pps)
- Routing table: max. 4K routing rules
- Concurrent connections: max. 120K
- Connections per second: max. 6K
- IPS throughput: max. 500 Mbps (requires additional licence)
- VPN protocols: IPsec, L2TP (server), OpenVPN (client)
- VPN encryption: DES, 3DES, AES-128, AES-192, AES-256, AES-256-GCM
- Unicast routing: OSPF, RIPv1/v2, static route
- Redundancy protocols: RSTP, STP, Turbo Ring v2, Turbo Chain, VRRP
- VLAN ID range 1 to 4094, max. 128 VLANs
- Console port: RS-232, 3-pin; USB Type-C connector
- Alarm contact: 1 A @ 24 VDC resistive load
- Input voltage: 12/24/48 VDC redundant dual inputs (9.6 to 60 VDC operating)
- Input current: 0.53 A @ 12 VDC, 0.26 A @ 24 VDC, 0.14 A @ 48 VDC
- Reverse polarity protection supported
- Metal housing, IP40
- Dimensions: 45 x 135 x 105 mm
- Weight: 520 g
- DIN-rail mounting, wall mounting with optional kit
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Safety: IEC 62368-1, UL 62368-1
- EMI: CISPR 32, FCC Part 15B Class A
- MTBF: 1,347,225 hrs

FAQs

Q: How many VPN tunnels does the EDR-8010-VPN-2GSFP support?
A: It supports up to 50 concurrent IPsec VPN tunnels, with up to 300 Mbps VPN throughput using AES-256 and SHA-256.

Q: Which VPN protocols and encryption does it support?
A: It supports IPsec, L2TP (server) and OpenVPN (client), with DES, 3DES, AES-128, AES-192, AES-256 and AES-256-GCM encryption.

Q: What is the operating temperature range?
A: This is the standard-temperature model, rated for -10 to 60°C operation.

Q: Does it include intrusion prevention?
A: The router includes IPS/IDS capability, but IPS requires an additional licence. IPS throughput is up to 500 Mbps.

Q: How is the router powered?
A: It has redundant dual 12/24/48 VDC inputs through a removable terminal block, with an operating voltage range of 9.6 to 60 VDC and reverse polarity protection.

Q: How is it mounted?
A: It mounts on a DIN rail as standard, and can be wall mounted with an optional kit. The housing is metal with an IP40 rating.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
