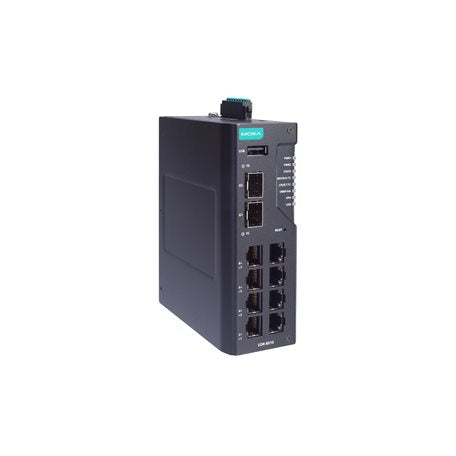

Moxa EDR-8010-VPN-2GSFP-CT-T | EDR-8010 Secure VPN Router, Coated, -40 to 75C, 2x GbE SFP

Authorised Moxa Partner

SKU:EDR-8010-VPN-2GSFP-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDR-8010-VPN-2GSFP-CT-T is an industrial secure VPN router that combines firewall, NAT and IPsec VPN in a compact DIN-rail housing. It provides 8 x 10/100BaseT(X) RJ45 ports and 2 x 1000BaseSFP slots, supports up to 50 concurrent IPsec VPN tunnels, and is built with conformal coating for operation from -40 to 75°C. This makes it well suited to securing remote sites, substations, transport and other harsh-environment OT networks.

The router offers stateful firewall inspection in router and transparent modes, Deep Packet Inspection for industrial protocols such as Modbus, DNP3, IEC 61850 and EtherNet/IP, and an optional Intrusion Prevention System with an additional licence. Redundant 12/24/48 VDC dual power inputs, a metal IP40 housing and a broad certification list including IEC 61850-3, IEEE 1613, EN 50121-4 and DNV support deployment in demanding industrial applications.

Features

- Stateful firewall in router and transparent (bridge) modes
- Deep Packet Inspection for industrial protocols including Modbus TCP/UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, MELSEC, Omron FINS, OPC UA and Siemens S7
- Optional Intrusion Prevention System (additional licence)
- IPsec, L2TP (server) and OpenVPN (client) VPN support
- NAT options: 1-to-1, N-to-1, port forwarding and NAT loopback
- DoS/DDoS protection and Secure Boot
- Routing with OSPF, RIPv1/v2 and static routes, plus VRRP routing redundancy
- Layer 2 redundancy with RSTP, STP, Turbo Ring v2 and Turbo Chain
- Redundant dual power inputs with reverse polarity protection
- Conformal coating for harsh environments
- Certifications include IEC 61850-3, IEEE 1613, EN 50121-4, NEMA TS2, DNV, ATEX, Class I Div 2 and IECEx

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) RJ45 ports
- 2 x 1000BaseSFP slots
- Routing throughput: max. 50K pps / 500 Mbps (RFC 2544)
- Firewall throughput: max. 80K pps / 1000 Mbps (RFC 2544)
- IPsec VPN: max. 50 concurrent tunnels, up to 300 Mbps (AES-256, SHA-256)
- IPsec VPN encryption: DES, 3DES, AES-128, AES-192, AES-256, AES-256-GCM
- IPS throughput: max. 40K pps / 500 Mbps (requires additional licence)
- Concurrent connections: max. 120K
- Routing table: max. 4K routing rules
- Max. 128 VLANs, VID 1 to 4094
- Console port: RS-232 via USB Type-C connector
- Input voltage: 12/24/48 VDC, redundant dual inputs (operating range 9.6 to 60 VDC)
- Housing: metal, IP40
- Dimensions: 45 x 135 x 105 mm
- Weight: 520 g
- Mounting: DIN-rail, wall mounting with optional kit
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% (non-condensing)
- MTBF: 1,347,225 hrs (Telcordia/Bellcore, GB)

FAQs

Q: How many VPN tunnels does the EDR-8010-VPN-2GSFP-CT-T support?
A: It supports up to 50 concurrent IPsec VPN tunnels, with throughput of up to 300 Mbps using AES-256 and SHA-256.

Q: What network ports does this router provide?
A: It has 8 x 10/100BaseT(X) RJ45 ports and 2 x 1000BaseSFP slots, with user-configurable DMZ ports.

Q: Does it need an extra licence for intrusion prevention?
A: Yes. The Intrusion Prevention System is optional and requires an additional licence. The firewall, NAT and VPN functions are included.

Q: What temperature range and protection does it offer?
A: It operates from -40 to 75°C and is conformal coated for harsh environments. The metal housing is rated IP40 and is intended for cabinet or DIN-rail installation.

Q: How is the router powered?
A: It accepts 12/24/48 VDC on redundant dual inputs, with an operating voltage range of 9.6 to 60 VDC and reverse polarity protection.

Q: Which industrial protocols can the firewall inspect?
A: Deep Packet Inspection covers Modbus TCP/UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, MELSEC, Omron FINS, OPC UA and Siemens S7.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
