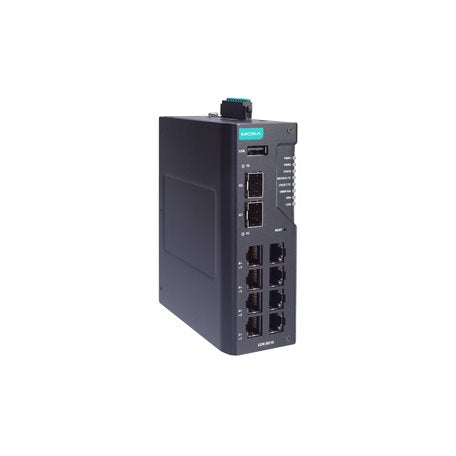

Moxa EDR-8010-VPN-2GSFP-CT | EDR-8010 Industrial Secure Router, VPN, Conformal Coating, 8x FE, 2x GbE SFP

Authorised Moxa Partner

SKU:EDR-8010-VPN-2GSFP-CT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The EDR-8010-VPN-2GSFP-CT is an industrial secure router with firewall, NAT and IPsec VPN, built for protecting OT networks in harsh environments. It provides 8 x 10/100BaseT(X) RJ45 ports and 2 x 1000BaseSFP slots, supports up to 50 IPsec VPN tunnels, and delivers up to 1000 Mbps firewall throughput and 500 Mbps routing throughput. The conformal-coated PCB suits dusty, humid and corrosive conditions, and the unit operates from -10 to 60°C.

OT-centric deep packet inspection covers industrial protocols including Modbus TCP/UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP and OPC UA. Redundant 12/24/48 VDC dual power inputs, an IP40 metal housing and DIN-rail mounting make it straightforward to deploy in control cabinets. Maritime, rail, substation and hazardous-location certifications support use in demanding industrial sectors.

Features

- Firewall, NAT and IPsec VPN secure routing for industrial networks
- OT-centric deep packet inspection for Modbus, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, OPC UA and other industrial protocols
- Optional intrusion prevention system (separate licence required)
- Stateful firewall in router and transparent (bridge) modes
- DoS/DDoS protection
- Secure Boot
- NAT options: 1-to-1, N-to-1, port forwarding and NAT loopback
- Redundancy via Turbo Ring v2, Turbo Chain, RSTP/STP and VRRP
- Routing support for OSPF, RIPv1/v2 and static routes
- User-configurable DMZ ports
- Conformal coating for harsh environments
- Redundant dual 12/24/48 VDC power inputs with reverse polarity protection
- Maritime, rail, substation and hazardous-location certifications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) RJ45 ports
- 2 x 1000BaseSFP slots
- Firewall throughput: max. 1000 Mbps (80K pps, RFC 2544)
- Routing throughput: max. 500 Mbps (50K pps, RFC 2544)
- VPN throughput: max. 300 Mbps (AES-256, SHA-256)
- Max. 50 IPsec VPN tunnels
- VPN protocols: IPsec, L2TP (server), OpenVPN (client)
- Max. 120K concurrent connections, 6K connections per second
- Max. 4K routing rules, 128 VLANs (VID 1 to 4094)
- Redundant dual power inputs: 12/24/48 VDC (9.6 to 60 VDC)
- Conformal-coated PCB
- IP40 metal housing, DIN-rail mounting (wall mounting with optional kit)
- Dimensions: 45 x 135 x 105 mm
- Weight: 520 g
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Console: RS-232 and USB Type-C
- Digital input and alarm contact (1 A @ 24 VDC)

FAQs

Q: What does the -CT suffix mean on this EDR-8010 model?
A: The -CT suffix indicates a conformal-coated PCB, which helps protect the electronics in dusty, humid or corrosive environments. This model also includes VPN support and an operating range of -10 to 60°C.

Q: How many VPN tunnels does the EDR-8010-VPN-2GSFP-CT support?
A: It supports up to 50 IPsec VPN tunnels, with additional L2TP (server) and OpenVPN (client) support. IPsec encryption includes AES-128/192/256 and AES-256-GCM.

Q: Does this router include intrusion prevention?
A: The intrusion prevention system (IPS) is available as an optional feature and requires a separate licence. The unit's firewall, NAT, VPN and OT deep packet inspection features are available without it.

Q: What industrial protocols can the deep packet inspection filter?
A: It inspects Modbus TCP/UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, MELSEC, Omron FINS, OPC UA, Siemens S7 Comm. and S7 Comm. Plus traffic.

Q: How is the router powered and mounted?
A: It has redundant dual power inputs accepting 12/24/48 VDC (9.6 to 60 VDC) via a removable terminal block. It mounts on a DIN rail, or on a wall using the optional wall-mount kit.

Q: What fibre or copper options are available on the SFP slots?
A: The two slots are 1000BaseSFP, so they accept Gigabit SFP transceivers for fibre or copper uplinks, in addition to the 8 Fast Ethernet RJ45 ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
