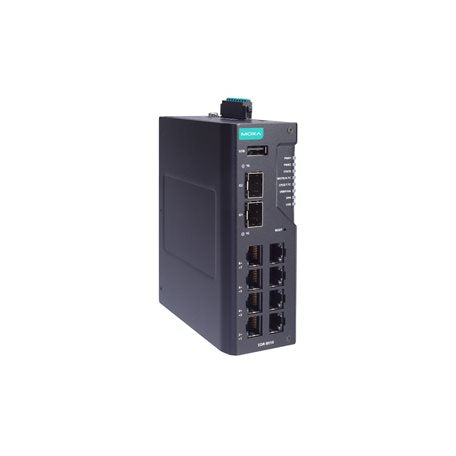

Moxa EDR-8010-2GSFP-T | EDR-8010 Industrial Secure Router, Firewall/NAT, 2 GbE SFP, -40 to 75°C

Authorised Moxa Partner

SKU:EDR-8010-2GSFP-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDR-8010-2GSFP-T is an industrial secure router that combines firewall, NAT, routing and Layer 2 switching in a single wide-temperature unit. This non-VPN Firewall/NAT model provides 8 Fast Ethernet copper ports and 2 Gigabit SFP ports, and operates from -40 to 75°C, making it well suited to protecting control networks in automation environments and critical facilities.

It accepts 12/24/48 VDC power input and includes an alarm contact, a digital input and a reset button for straightforward integration into industrial cabinets. Certifications cover power substation, railway, traffic control and hazardous location applications, so it can be deployed across a wide range of demanding sites.

Features

- Integrated industrial firewall, router and Layer 2 switching in a single product
- Protects the integrity of remote access and critical devices in control networks
- Wide operating temperature range of -40 to 75°C
- Industrial certifications for substation, railway, traffic control and hazardous locations
- Designed for automation networks and critical facilities

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) Fast Ethernet copper ports
- 2 x 1000BaseSFP Gigabit Ethernet ports
- Firewall/NAT (non-VPN model)
- Input voltage: 12/24/48 VDC
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Alarm contact: resistive load 1 A @ 24 VDC
- Digital input: +13 to +30 V for state 1, -30 to +3 V for state 0, max 8 mA
- Reset button
- MTBF: 1,347,225 hrs (Telcordia)
- Safety: IEC 62368-1, UL 62368-1
- EMI: CISPR 32, FCC Part 15B Class A; EMC: EN 55032/35
- Railway: EN 50121-4; Traffic control: NEMA TS2
- Power substation: IEC 61850-3 Ed. 2.0, IEEE 1613
- Hazardous locations: ATEX Class I Division 2, IECEx

FAQs

Q: Does the EDR-8010-2GSFP-T support VPN?
A: No. This is the Firewall/NAT model without VPN. It provides firewall, NAT, routing and Layer 2 switching functions.

Q: What ports does this router provide?
A: It has 8 x 10/100BaseT(X) Fast Ethernet copper ports and 2 x 1000BaseSFP Gigabit Ethernet ports.

Q: What operating temperature range does it support?
A: It operates from -40 to 75°C (-40 to 167°F), suitable for harsh industrial environments.

Q: What power input does it accept?
A: The router accepts 12/24/48 VDC input voltage.

Q: Is it suitable for power substation or railway applications?
A: Yes. It is certified to IEC 61850-3 Ed. 2.0 and IEEE 1613 for power substations, EN 50121-4 for railway and NEMA TS2 for traffic control.

Q: Is it approved for hazardous locations?
A: Yes. It carries ATEX Class I Division 2 and IECEx hazardous location approvals.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
