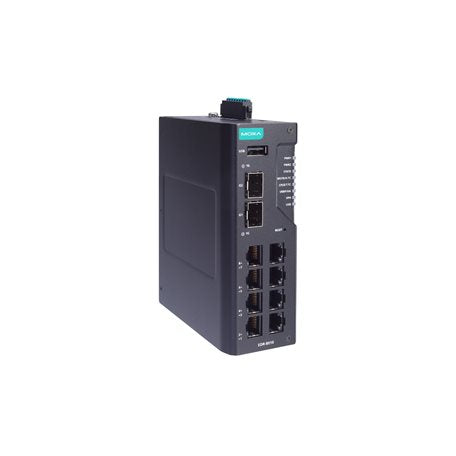

Moxa EDR-8010-2GSFP-CT-T | EDR-8010 Industrial Secure Router, 8 FE, 2 GbE SFP, Coated

Authorised Moxa Partner

SKU:EDR-8010-2GSFP-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDR-8010-2GSFP-CT-T is an industrial secure router with firewall and NAT, 8 Fast Ethernet RJ45 ports and 2 Gigabit SFP slots. Built for harsh deployments, it operates from -40 to 75°C and has conformal-coated circuit boards. This is the non-VPN model with no VPN licence, delivering up to 1000 Mbps firewall throughput and 500 Mbps routing throughput.

It supports 12/24/48 VDC redundant dual power inputs, Layer 3 routing with OSPF, RIP and VRRP, and OT-aware deep packet inspection for protocols including Modbus, DNP3, IEC 61850 MMS, EtherNet/IP and OPC UA. The IP40 metal housing mounts on a DIN rail, and the router carries maritime, rail, power substation and hazardous-location certifications.

Features

- Stateful inspection firewall in router and transparent (bridge) modes
- OT-centric deep packet inspection for Modbus, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, OPC UA, Siemens S7 and more
- Optional IPS (requires additional licence)
- IPsec VPN with AES-256 encryption and X.509 certificate authentication
- NAT: 1-to-1, N-to-1, port forwarding and NAT loopback
- Layer 3 routing with OSPF, RIP and VRRP redundancy
- Turbo Ring v2, Turbo Chain and RSTP network redundancy
- DoS/DDoS protection
- Secure Boot and trusted access control
- Wide -40 to 75°C range with conformal-coated PCB for harsh environments
- Maritime, rail, power substation and hazardous-location certifications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) RJ45 ports
- 2 x 1000BaseSFP slots
- Firewall throughput: max. 1000 Mbps (80K pps)
- Routing throughput: max. 500 Mbps (50K pps)
- Max. 120K concurrent connections, 6K connections per second
- Max. 4K routing rules, up to 32 VLANs
- Max. 50 IPsec VPN tunnels, up to 300 Mbps IPsec throughput
- 12/24/48 VDC redundant dual power inputs (9.6 to 60 VDC)
- Operating temperature: -40 to 75°C
- Conformal-coated circuit boards
- IP40 metal housing, DIN-rail mounting
- Dimensions: 45 x 135 x 105 mm, weight 520 g
- RS-232 console port with USB Type-C connector
- Alarm relay output and digital input
- MTBF: 1,347,225 hours (Telcordia)
- 5-year warranty

FAQs

Q: Does the EDR-8010-2GSFP-CT-T include VPN?
A: This is the non-VPN model, so it does not include the VPN licence. It is positioned as a firewall, NAT and routing appliance with 8 FE ports and 2 GbE SFP slots.

Q: What operating temperature range does it support?
A: It operates from -40 to 75°C, and the conformal-coated circuit boards add protection in harsh environments.

Q: What power inputs does it use?
A: It has redundant dual inputs for 12/24/48 VDC (operating range 9.6 to 60 VDC) via a removable terminal block, with reverse polarity protection.

Q: Which industrial protocols can it inspect?
A: Its deep packet inspection covers Modbus TCP/UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, MELSEC, Omron FINS, OPC UA and Siemens S7 Comm.

Q: Is the intrusion prevention system included?
A: IPS is available on the EDR-8010 platform but requires an additional licence, and IPS throughput is up to 500 Mbps.

Q: How is the router mounted?
A: It mounts on a DIN rail in an IP40 metal housing. Wall mounting is available with an optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
