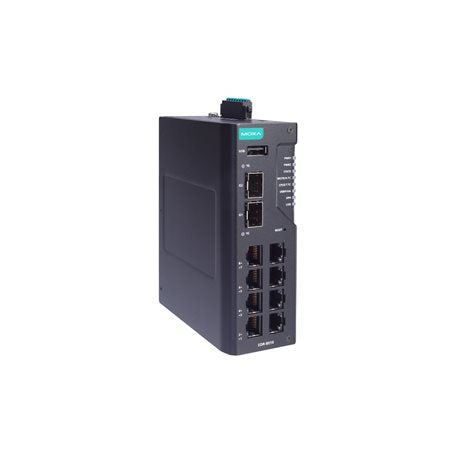

Moxa EDR-8010-2GSFP-CT | EDR-8010 Industrial Secure Router, 8 FE, Coated, No VPN, 2x GbE SFP

Authorised Moxa Partner

SKU:EDR-8010-2GSFP-CT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDR-8010-2GSFP-CT is an EDR-8010 industrial secure router that combines a firewall, NAT, router and switch in one compact DIN-rail unit. It provides 8 Fast Ethernet RJ45 ports and 2 Gigabit SFP slots, with conformal coated PCBs for harsh environments. This variant has no VPN and operates from -10 to 60°C, making it suited to substation, marine and factory automation networks that need segmentation and protection for operational technology.

Routing throughput reaches 500 Mbps (50K pps), with OSPF, RIPv1/v2, static routing and VRRP routing redundancy, plus RSTP, Turbo Ring v2 and Turbo Chain for layer 2 resilience. Deep packet inspection covers Modbus TCP/UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, MELSEC, Omron FINS, OPC UA and Siemens S7. Redundant dual 12/24/48 VDC inputs, a metal IP40 housing and marine certifications (DNV IEC 61162-460 and IACS UR E27) support demanding installations. SFP modules are sold separately.

Features

- All-in-one firewall, NAT, router and switch
- Marine cybersecurity certified (IACS UR E27 Rev.1 and IEC 61162-460 Ed. 3.0)
- Deep packet inspection for industrial protocols including Modbus, DNP3, IEC 61850, EtherNet/IP and OPC UA
- Next-generation industrial firewall with IPS/IDS (IPS requires an additional licence)
- RSTP, STP, Turbo Ring v2 and Turbo Chain redundancy
- OSPF, RIPv1/v2, static routing and VRRP
- Developed according to IEC 62443-4-2 with Secure Boot
- Conformal coating for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) RJ45 ports
- 2 x 1000BaseSFP slots
- Routing throughput up to 500 Mbps / 50K pps
- Up to 4K routing rules, 120K concurrent connections, 6K connections per second
- Stateful inspection firewall and transparent (bridge) firewall
- NAT: 1-to-1, N-to-1, port forwarding, NAT loopback
- Conformal coating, no VPN on this model
- Redundant dual 12/24/48 VDC inputs, 9.6 to 60 VDC operating range
- Operating temperature -10 to 60°C, storage -40 to 85°C
- Metal housing, IP40, DIN-rail mounting
- Dimensions 45 x 135 x 105 mm, weight 520 g
- Console: RS-232 via USB Type-C connector
- Alarm contact and digital input, reset button
- Safety: IEC 62368-1, UL 62368-1

FAQs

Q: Does the EDR-8010-2GSFP-CT support VPN?
A: No. This -CT model has no VPN. It provides firewall, NAT, routing and switching functions.

Q: What is the operating temperature range of this model?
A: This variant operates from -10 to 60°C. Storage temperature is -40 to 85°C.

Q: Are SFP modules included?
A: No. The router has 2 Gigabit SFP slots fitted with dust caps. SFP modules are sold separately.

Q: What does the conformal coating do?
A: The conformal coating on the PCBs helps protect the electronics in harsh environments such as those with humidity or dust.

Q: Does it support redundant power?
A: Yes. It has redundant dual 12/24/48 VDC inputs with a 9.6 to 60 VDC operating range and reverse polarity protection.

Q: Which industrial protocols can the firewall inspect?
A: Deep packet inspection covers Modbus TCP/UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, MELSEC, Omron FINS, OPC UA and Siemens S7. The intrusion prevention system requires an additional licence.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
