Description

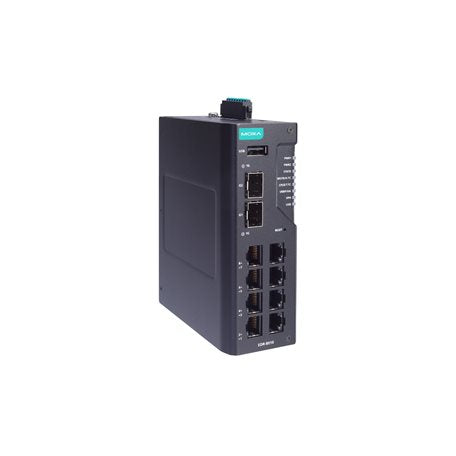

The EDR-8010-2GSFP is an industrial secure router that combines a stateful firewall, NAT, routing and Layer 2 switching in one DIN-rail unit. It provides 8 Fast Ethernet copper ports and 2 Gigabit SFP slots for fibre or copper uplinks, with firewall and NAT functions (no VPN on this model) and Deep Packet Inspection for industrial protocols such as Modbus, DNP3, IEC 61850 MMS, EtherNet/IP and OPC UA. It is suited to protecting control networks at cell, zone and substation boundaries.

Built for demanding sites, it runs from 12/24/48 VDC redundant dual power inputs with reverse polarity protection, in a compact IP40 metal housing rated for -10 to 60°C. Redundancy options include VRRP, Turbo Ring v2 and Turbo Chain, and the unit holds maritime, rail, power substation and hazardous-location certifications. Optional IPS is available with an additional licence.

Features

- Integrated industrial firewall, NAT, router and Layer 2 switching
- Deep Packet Inspection for industrial protocols including Modbus, DNP3, IEC 61850 MMS, EtherNet/IP, OPC UA and Siemens S7
- Stateful inspection with router and transparent (bridge) firewall modes
- NAT with 1-to-1, N-to-1, port forwarding and NAT loopback
- DoS/DDoS protection against SYN, ICMP and ARP floods and port scans
- Secure Boot and trust access control
- VRRP routing redundancy plus Turbo Ring v2 and Turbo Chain network redundancy
- OSPF, RIPv1/v2 and static routing
- Redundant dual power inputs with reverse polarity protection
- Maritime, rail, substation and hazardous-location certifications
- Event logging to local storage, SNMP trap and syslog

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) RJ45 ports
- 2 x 1000BaseSFP slots
- Firewall throughput: max. 80K pps / 1000 Mbps
- Routing throughput: max. 50K pps / 500 Mbps
- IPS throughput: max. 40K pps / 500 Mbps (requires additional licence)
- Max. 120K concurrent connections, 6K connections per second
- Routing table: max. 4K routing rules
- 12/24/48 VDC redundant dual inputs, operating 9.6 to 60 VDC
- Removable terminal block power connection with reverse polarity protection
- Console: USB Type-C
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Metal housing, IP40
- DIN-rail mounting, wall mounting with optional kit
- Dimensions: 45 x 135 x 105 mm
- Weight: 520 g
- MTBF: 1,347,225 hours

FAQs

Q: Does the EDR-8010-2GSFP support VPN?
A: No. This model provides firewall and NAT functions without VPN. Choose a VPN-enabled model in the EDR-8010 range if you need site-to-site VPN.

Q: What ports does it provide?
A: It has 8 x 10/100BaseT(X) RJ45 ports and 2 x 1000BaseSFP slots, which can be fitted with Gigabit SFP modules for fibre or copper uplinks.

Q: Which industrial protocols can the firewall inspect?
A: Deep Packet Inspection covers Modbus TCP/UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, MELSEC, Omron FINS, OPC UA and Siemens S7 Comm./S7 Comm. Plus.

Q: Is an Intrusion Prevention System included?
A: IPS is supported but requires an additional licence to enable.

Q: What power supply does it need?
A: It uses 12/24/48 VDC redundant dual inputs via a removable terminal block, with an operating range of 9.6 to 60 VDC and reverse polarity protection.

Q: What is the operating temperature range?
A: This model operates from -10 to 60°C, so it suits standard industrial cabinets rather than extended wide-temperature environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
