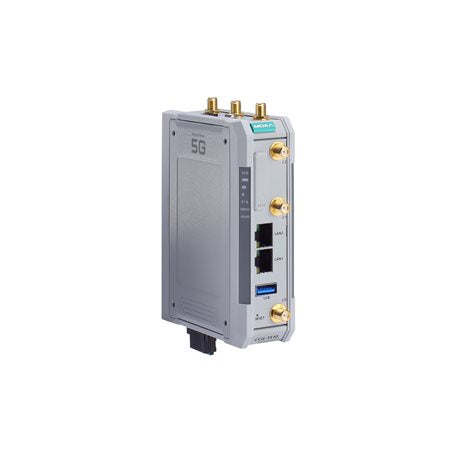

Moxa CCG-1520-T | CCG-1500 Industrial 5G Cellular Gateway, n79 Band, 4x SMA

Authorised Moxa Partner

SKU:CCG-1520-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CCG-1520-T is an industrial 5G cellular gateway built for private 5G networks on the n79 band (TDD 4500 MHz). It provides 5G-to-Ethernet and 5G-to-serial media conversion with 2 x Gigabit Ethernet ports, a serial port and 4 x SMA antenna connectors, in an IP30 metal housing rated for -40 to 70°C operation.

Dual Nano SIM slots support failover and automatic connection recovery for dependable cellular uplinks, while Modbus TCP/RTU protocol conversion and VxLAN tunnelling suit industrial automation and remote site deployments. DIN-rail mounting, a wide 9 to 24 VDC input and low power consumption make it straightforward to integrate into control cabinets.

Features

- Dual SIM failover and auto connection recovery (Keep Alive) for reliable cellular connectivity
- Low power consumption, 8 W on average
- Configurable 5G NSA/SA bands with visible base station data
- VxLAN tunnelling support
- Media converter function (5G-to-Ethernet, 5G-to-serial)
- Modbus TCP/RTU protocol conversion
- Wide-temperature design for harsh industrial environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 5G Release 15, n79 (TDD 4500 MHz) band
- Data rate up to 950 Mbps DL / 450 Mbps UL
- 2 x 10/100/1000BaseT(X) RJ45 Ethernet ports
- 2 x Nano SIM (push-eject tray, dual SIM)
- 4 x SMA female cellular antenna connectors
- 1 x USB 3.0 Type A port
- 1 x RS-232/422/485 serial port and console port
- 9 to 24 VDC input via terminal block; 8 W average, 11 W peak
- IP30 rated metal (SECC) housing
- Dimensions: 100 x 125 x 35.2 mm, weight 750 g
- Operating temperature: -40 to 70°C
- DIN-rail mounting; wall mounting with optional kit
- Reset button; LEDs for SIG, P/S, SIM1/2 and 4G/5G

FAQs

Q: Which 5G band does the Moxa CCG-1520-T support?
A: The CCG-1520-T supports the n79 band (TDD 4500 MHz) under 5G Release 15, intended for private 5G network deployments.

Q: What network and serial interfaces does it provide?
A: It has 2 x 10/100/1000BaseT(X) RJ45 Ethernet ports, 1 x RS-232/422/485 serial port, a console port and 1 x USB 3.0 Type A port.

Q: Does it support dual SIM failover?
A: Yes. It has 2 x Nano SIM slots with dual SIM failover and auto connection recovery to maintain cellular connectivity.

Q: What is the operating temperature range?
A: It operates from -40 to 70°C. Cellular performance may be reduced below -5°C and above 55°C.

Q: How is the CCG-1520-T powered and mounted?
A: It runs from a 9 to 24 VDC terminal block input with an 8 W average draw. Mounting is by DIN rail, or on a wall with the optional wall-mount kit.

Q: Can it connect serial devices to a 5G network?
A: Yes. It works as a 5G-to-serial and 5G-to-Ethernet media converter and supports Modbus TCP/RTU protocol conversion.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
