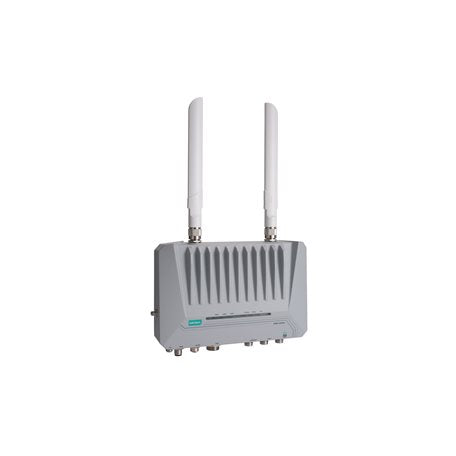

Moxa AWK-4262A-UN-T | AWK-4262A Industrial Outdoor Wi-Fi 6 AP, M12 2.5GbE, IP68, UN Band, -40 to

Authorised Moxa Partner

SKU:AWK-4262A-UN-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-4262A-UN-T is an industrial outdoor Wi-Fi 6 (802.11ax) wireless AP, bridge and client built for harsh environments. This UN band variant offers concurrent dual-band operation with an aggregated data rate of up to 1.775 Gbps, an IP68-rated weatherproof housing and an operating temperature range of -40 to 75°C.

It provides one M12 10/100/1000/2500BaseT(X) port and one M12 10/100/1000BaseT(X) port, with redundant dual 12 to 48 VDC power inputs or 48 VDC PoE for flexible deployment. Wi-Fi 6 OFDMA and Spatial Reuse suit high-density environments, while AeroMesh supports self-forming, self-healing mesh networks. WPA3 and 802.1X/RADIUS security options help protect industrial wireless links.

Features

- Wi-Fi 6 OFDMA and Spatial Reuse for multi-client communication in high-density environments
- AeroMesh adaptive, self-forming, self-healing, controller-agnostic mesh network
- Power and antenna port isolation for enhanced ESD and surge protection
- Security features referencing IEC 62443-4-2 Security Level 2
- Redundant dual power inputs plus PoE for flexible deployment
- Operates as an access point, bridge or client

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Standards: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) AP/bridge/client
- Concurrent dual-band, aggregated data rate up to 1.775 Gbps (2.4 GHz up to 573.5 Mbps, 5 GHz up to 1,201 Mbps)
- Ethernet: 1 x M12 10/100/1000/2500BaseT(X) port and 1 x M12 10/100/1000BaseT(X) port
- Band: UN band (e.g. 5.500 to 5.700 GHz, 11 channels, DFS support)
- Housing: IP68-rated weatherproof
- Operating temperature: -40 to 75°C; storage temperature: -40 to 85°C
- Input voltage: 12 to 48 VDC, redundant dual inputs, or 48 VDC PoE
- Input current: 2 to 0.5 A at 12 to 48 VDC; power consumption 24 W max.
- Power connector: M12 A-coded 5-pin male
- Alarm contact: relay output, 1 A @ 24 VDC
- 1 x USB Type-A port for Moxa ABC-02 backup and configuration tool, reset button
- Security: WPA/WPA2/WPA3-Personal and Enterprise (802.1X/RADIUS)

FAQs

Q: What operating modes does the AWK-4262A-UN-T support?
A: It can be deployed as a wireless access point, bridge or client, and supports AeroMesh for self-forming, self-healing mesh networks.

Q: What is the operating temperature range?
A: This model operates from -40 to 75°C, with a storage temperature range of -40 to 85°C.

Q: How can the AWK-4262A-UN-T be powered?
A: It accepts 12 to 48 VDC with redundant dual inputs, or 48 VDC PoE. Power is supplied through an M12 A-coded 5-pin male connector.

Q: What Ethernet ports does it provide?
A: It has one M12 10/100/1000/2500BaseT(X) port and one M12 10/100/1000BaseT(X) port.

Q: Is it suitable for outdoor installations?
A: Yes. The IP68-rated housing and power and antenna port isolation make it suited to outdoor and harsh industrial environments.

Q: What does the UN band designation mean?
A: UN indicates the regional band variant of the AWK-4262A series, covering 5 GHz channels such as 5.500 to 5.700 GHz with DFS support.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
