Moxa AWK-4252A-US-T | AWK-4252A Outdoor Industrial Wi-Fi 5 AP/Bridge/Client, US Band, -40 to 75°C

Authorised Moxa Partner

SKU:AWK-4252A-US-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

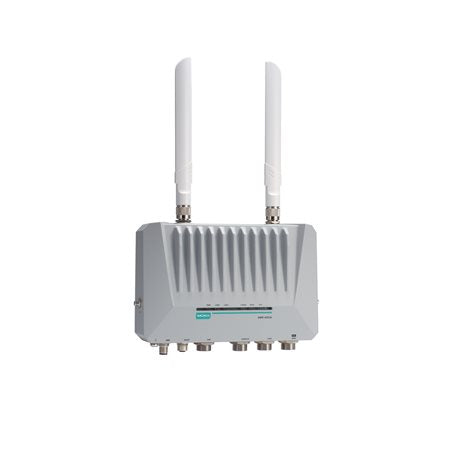

The Moxa AWK-4252A-US-T is an outdoor industrial IEEE 802.11ac Wave 2 (Wi-Fi 5) dual-band wireless AP, bridge and client for the US band. It delivers concurrent 2.4 GHz and 5 GHz operation with an aggregated data rate of up to 1.267 Gbps, in an IP68-rated enclosure built for harsh outdoor deployments. This T model is designed for wide-temperature operation from -40 to 75°C.

Supporting access point, client, client-router, master, slave, sniffer and mesh modes, the AWK-4252A-US-T suits rail, mining, port, oil and gas and factory automation networks. AeroMesh provides a self-forming, self-healing, controller-agnostic mesh network, while redundant 12 to 48 VDC inputs or 48 VDC PoE give flexible powering options. DFS channel support and IEC 62443-4-2 Security Level 1 certification support secure, compliant industrial wireless networks.

Features

- IEEE 802.11ac Wi-Fi 5 AP/bridge/client
- Concurrent dual-band Wi-Fi with aggregated data rates up to 1.267 Gbps
- Adaptive, self-forming, self-healing, controller-agnostic mesh network with AeroMesh
- DFS channel support
- Can be powered via PoE for flexible deployment
- IEC 62443-4-2 Security Level 1 certification (AWK-1151C/3252A/4252A series)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11a/b/g/n/ac Wave 2, concurrent dual-band (2.4 GHz and 5 GHz)
- Aggregated data rate up to 1.267 Gbps (2.4 GHz up to 400 Mbps, 5 GHz up to 867 Mbps)
- US band frequencies: 2.412-2.462 GHz, 5.180-5.240 GHz, 5.260-5.320 GHz, 5.500-5.700 GHz (20 MHz channels)
- Operating modes: Access Point, Client, Client-Router, Master, Slave, Sniffer, Mesh
- External 3/6 dBi omni-directional antennas
- Operating temperature: -40 to 75°C (T model)
- Power input: 12 to 48 VDC redundant dual inputs, or 48 VDC PoE
- Power connector: M12 A-coded 5-pin male
- Maximum power consumption: 28.4 W
- Console port: RS-232 8-pin RJ45
- LED indicators: PWR, LAN1, LAN2, 2.4G, 5G, SYS
- IP68 outdoor-rated enclosure

FAQs

Q: What operating modes does the AWK-4252A-US-T support?
A: It supports Access Point, Client, Client-Router, Master, Slave, Sniffer and Mesh modes, so one unit can be deployed as an AP, a wireless bridge or a client depending on the application.

Q: What does the US band version mean?
A: The US band model is configured for US frequency allocations: 2.412-2.462 GHz, 5.180-5.240 GHz, 5.260-5.320 GHz and 5.500-5.700 GHz using 20 MHz channels.

Q: What temperature range and ingress protection does this model offer?
A: The T model operates from -40 to 75°C and has an IP68-rated enclosure, making it suitable for outdoor and harsh industrial environments.

Q: How is the AWK-4252A-US-T powered?
A: It accepts redundant dual 12 to 48 VDC inputs or 48 VDC PoE, through an M12 A-coded 5-pin male power connector. Maximum power consumption is 28.4 W.

Q: Does it support mesh networking?
A: Yes. AeroMesh provides an adaptive, self-forming, self-healing and controller-agnostic mesh network, and mesh is one of the supported operating modes.

Q: What wireless data rates can I expect?
A: Concurrent dual-band operation gives an aggregated rate of up to 1.267 Gbps, made up of up to 400 Mbps on 2.4 GHz and up to 867 Mbps on 5 GHz.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
