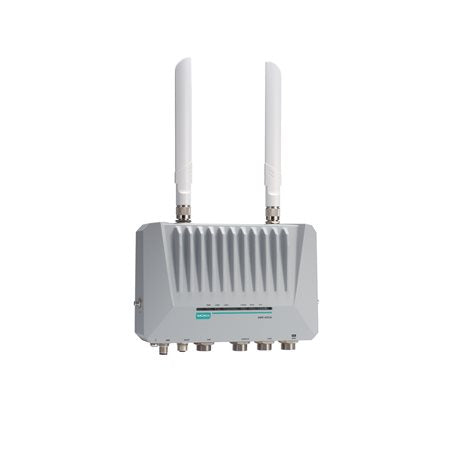

Moxa AWK-4252A-UN-T | AWK-4252A Outdoor Industrial Wi-Fi 5 AP/Bridge/Client, UN Band, IP68, -40 to

Authorised Moxa Partner

SKU:AWK-4252A-UN-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-4252A-UN-T is an outdoor industrial 802.11ac Wave 2 (Wi-Fi 5) wireless AP, bridge and client with concurrent dual-band 2.4 GHz and 5 GHz operation and aggregated data rates up to 1.267 Gbps. This universal UN band model has configurable country and region codes for flexible deployment, and the -T variant operates across a wide -40 to 75°C temperature range inside an IP68 rated metal housing.

Two Gigabit RJ45 ports, one of which supports IEEE 802.3af/at PoE input, and redundant 12-48 VDC power inputs give flexible installation options. Turbo Roaming, WPA3 encryption and support for AP, client, client-router, master, slave, sniffer and mesh modes make it well suited to demanding industrial wireless deployments such as mines, ports, rail and factory automation.

Features

- Universal (UN) model with configurable country and region codes for flexible deployment
- WPA3 encryption for enhanced wireless security
- Network Address Translation (NAT) for easy network setup
- Millisecond-level client-based Turbo Roaming
- Built-in 2.4 GHz and 5 GHz band pass filters for more reliable wireless connections
- Integrated antenna isolation
- Developed according to IEC 62443-4-1 and compliant with IEC 62443-4-2 industrial cybersecurity standards
- Powered via PoE or redundant DC inputs for flexible deployment
- AeroMesh adaptive, self-forming, self-healing, controller-agnostic mesh networking

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11a/b/g/n/ac Wave 2, concurrent dual-band 2.4 GHz and 5 GHz
- Aggregated data rate up to 1.267 Gbps (400 Mbps at 2.4 GHz, 867 Mbps at 5 GHz)
- UN band: 2.412-2.472 GHz (13 channels); 5.180-5.240, 5.260-5.320, 5.500-5.700 and 5.745-5.825 GHz
- 2 x N-type female antenna connectors
- 1 x 10/100/1000BaseT(X) RJ45 port (LAN1) and 1 x PoE-capable 10/100/1000BaseT(X) RJ45 port (LAN2), IEEE 802.3af/at
- WLAN modes: Access Point, Client, Client-Router, Master, Slave, Sniffer, Mesh
- Power input: 12-48 VDC redundant dual inputs (M12 A-coded 5-pin) or 48 VDC via PoE
- 2 digital inputs, 1 relay alarm output (1 A @ 24 VDC), RS-232 console (RJ45)
- IP68 rated metal housing
- Wall, DIN-rail and pole mounting with optional kits
- Dimensions: 66.5 x 157.6 x 244 mm
- Weight: 2024 g
- Operating temperature: -40 to 75°C

FAQs

Q: What does the UN band designation mean on the AWK-4252A-UN-T?
A: UN is the universal model. It has configurable country and region codes, so one SKU can be deployed across different regulatory domains.

Q: What does the -T suffix indicate?
A: The -T model is the wide temperature variant, with an operating range of -40 to 75°C.

Q: Can the AWK-4252A-UN-T be powered over Ethernet?
A: Yes. LAN2 supports IEEE 802.3af/at PoE input at 48 VDC. It can alternatively be powered from redundant 12-48 VDC inputs via the M12 connector.

Q: What antenna connectors does it use?
A: It has 2 x N-type female connectors for external omni-directional antennas. 3 and 6 dBi antennas are supported.

Q: Which operating modes are supported?
A: The AWK-4252A-UN-T supports Access Point, Client, Client-Router, Master, Slave, Sniffer and Mesh modes, so it can serve as an AP, bridge or client in the same hardware.

Q: How is it mounted outdoors?
A: The IP68 rated metal housing supports wall mounting, and DIN-rail and pole mounting are available with optional kits.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
