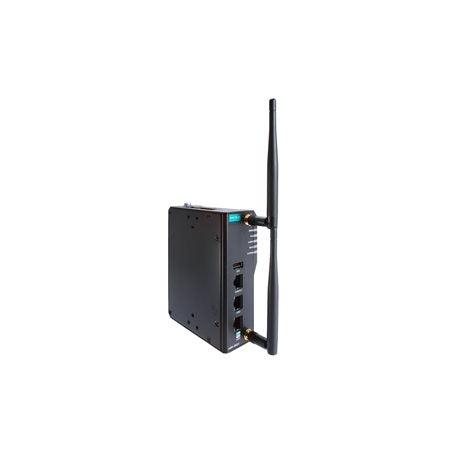

Moxa AWK-3262A-UN | AWK-3262A Wi-Fi 6 Industrial AP/Bridge/Client, UN Band, -25 to 60°C

Authorised Moxa Partner

SKU:AWK-3262A-UN

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-3262A-UN is an advanced industrial Wi-Fi 6 (802.11ax) wireless AP, bridge and client designed for indoor industrial environments such as factories and warehouses. This UN band variant delivers concurrent dual-band 2.4 GHz and 5 GHz operation with aggregated data rates up to 1.775 Gbps, and is housed in an IP30 enclosure rated for -25 to 60°C operation.

With one 10/100/1000/2500BaseT(X) port and one 10/100/1000BaseT(X) port, it provides a high-speed wired link back to the network. Built-in band pass filters, OFDMA and Spatial Reuse support reliable connectivity in high-density deployments, while AeroMesh and CC-Link IE TSN certification make it well suited to factory automation networks.

Features

- AP, bridge and client operating modes on IEEE 802.11ax Wi-Fi 6
- OFDMA and Spatial Reuse for multi-client communication in high-density environments
- AeroMesh: adaptive, self-forming, self-healing, controller-agnostic mesh network
- Built-in 2.4 GHz and 5 GHz band pass filters for more reliable wireless connections
- CC-Link IE TSN certified for integrating wireless devices into factory automation networks
- Compliant with EN 18031-1 for EU regulatory alignment and cybersecurity protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11ax (Wi-Fi 6) concurrent dual-band, 2.4 GHz and 5 GHz
- Aggregated data rates up to 1.775 Gbps
- 1 x 10/100/1000/2500BaseT(X) port
- 1 x 10/100/1000BaseT(X) port
- UN band: 2.412-2.472 GHz (13 channels) at 2.4 GHz
- UN band: 5.180-5.240 GHz and 5.260-5.320 GHz at 5 GHz, with DFS support
- 2.4 GHz: 802.11ax with 1024-QAM, 20/40 MHz channel widths
- 5 GHz: 802.11ax with 1024-QAM, 20/40/80 MHz channel widths
- WMM for QoS
- IP30 rated enclosure
- Operating temperature -25 to 60°C

FAQs

Q: What operating modes does the AWK-3262A-UN support?
A: It operates as a wireless access point, bridge or client, allowing it to be deployed for AP coverage, wireless backhaul links or to connect wired industrial devices to a Wi-Fi network.

Q: Which wireless standard and bands does it use?
A: It uses IEEE 802.11ax (Wi-Fi 6) with concurrent dual-band operation on 2.4 GHz and 5 GHz, with aggregated data rates up to 1.775 Gbps.

Q: What does the UN band designation mean?
A: UN refers to the regulatory domain this model is built for. It covers 2.412-2.472 GHz (13 channels) at 2.4 GHz and 5.180-5.240 GHz plus 5.260-5.320 GHz at 5 GHz, with DFS support.

Q: What wired ports does it have?
A: It has one 10/100/1000/2500BaseT(X) port and one 10/100/1000BaseT(X) port.

Q: What environmental conditions is it rated for?
A: It has an IP30 enclosure and an operating temperature range of -25 to 60°C, intended for indoor industrial environments such as factories and warehouses.

Q: Can it form a mesh network?
A: Yes. AeroMesh provides an adaptive, self-forming and self-healing mesh network that is controller-agnostic.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
