Moxa AWK-3252A-UN-T | AWK-3252A Industrial Wi-Fi 5 AP/Bridge/Client, UN Band, -40 to 75°C

Authorised Moxa Partner

SKU:AWK-3252A-UN-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

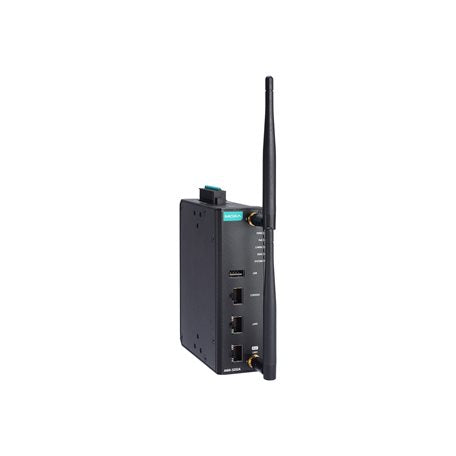

The Moxa AWK-3252A-UN-T is an industrial IEEE 802.11ac Wave 2 (Wi-Fi 5) dual-band wireless access point, bridge and client built for harsh environments. This UN-band model features a -40 to 75°C wide operating temperature range, concurrent 2.4 GHz and 5 GHz operation, and aggregated data rates up to 1.267 Gbps.

A metal housing, built-in 2.4 GHz and 5 GHz band pass filters and PoE power support make it suited to factory automation, transport and outdoor deployments. It supports adaptive, self-forming and self-healing mesh networking with AeroMesh in a controller-agnostic design.

Features

- IEEE 802.11ac Wi-Fi 5 AP, bridge and client modes
- Concurrent dual-band Wi-Fi with aggregated data rates up to 1.267 Gbps
- Adaptive, self-forming, self-healing, controller-agnostic mesh network with AeroMesh
- 40 to 75°C wide operating temperature for harsh environments
- Built-in 2.4 GHz and 5 GHz band pass filters for more reliable wireless connections
- Redundant power input options, including PoE

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Standards: IEEE 802.11a/b/g/n/ac Wave 2
- Band: UN
- Concurrent dual-band 2.4 GHz and 5 GHz
- Transmission rate: up to 400 Mbps (2.4 GHz) and up to 867 Mbps (5 GHz)
- Aggregated data rate: up to 1.267 Gbps
- Operating temperature: -40 to 75°C (-T model)
- Metal housing
- Power: supports PoE
- Built-in 2.4 GHz and 5 GHz band pass filters
- Transmitter power 802.11a (dual chain): 25±1.5 dBm @ 6 Mbps
- EMC/EMS: EN 55032/35, CISPR 32, FCC Part 15B Class A
- ESD: IEC 61000-4-2 contact 8 kV, air 15 kV

FAQs

Q: What operating temperature range does the AWK-3252A-UN-T support?
A: The -T model is rated for -40 to 75°C, suiting harsh industrial and outdoor-cabinet environments.

Q: Which Wi-Fi standards and bands does it support?
A: It supports IEEE 802.11a/b/g/n/ac Wave 2 with concurrent 2.4 GHz and 5 GHz operation.

Q: What are the maximum data rates?
A: Up to 400 Mbps on 2.4 GHz and up to 867 Mbps on 5 GHz, with aggregated rates up to 1.267 Gbps.

Q: Can it be powered over Ethernet?
A: Yes, it can be powered via PoE, and redundant power input options are available.

Q: Can it operate as an access point, bridge or client?
A: Yes, it supports AP, bridge and client roles, and can join an AeroMesh network for self-forming, self-healing mesh deployments.

Q: What does the UN band designation mean for this model?
A: UN denotes the regional band variant of this model, which is distinct from other regional versions in the AWK-3252A range. Confirm the variant suits your deployment region before ordering.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
