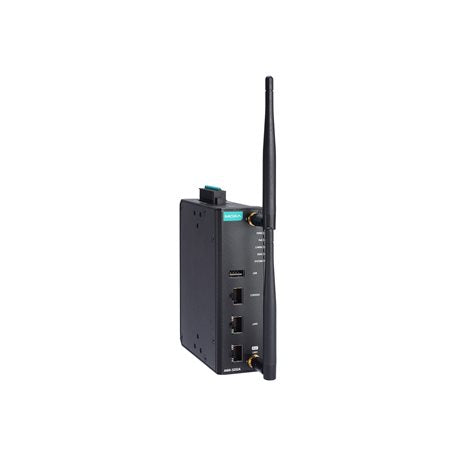

Moxa AWK-3252A-UN | AWK-3252A Industrial Wi-Fi 5 AP/Bridge/Client, UN Band, -25 to 60C

Authorised Moxa Partner

SKU:AWK-3252A-UN

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-3252A-UN is an industrial Wi-Fi 5 (IEEE 802.11ac Wave 2) wireless AP, bridge and client with concurrent dual-band 2.4 GHz and 5 GHz operation and aggregated data rates up to 1.267 Gbps. This UN band model offers a configurable country or region code for flexible deployment across regions and is rated for operation from -25 to 60\u00b0C, making it suited to factory floors, transport, mining and other demanding industrial wireless networks.

Built in an IP30 metal housing with DIN-rail mounting, it supports redundant 12-48 VDC power inputs or 48 VDC PoE, dual Gigabit Ethernet ports, WPA3 security and millisecond-level Turbo Roaming. Adaptive AeroMesh networking and multiple WLAN modes let it fit access point, client, client-router and mesh topologies.

Features

- Concurrent dual-band Wi-Fi with aggregated data rates up to 1.267 Gbps
- WPA3 encryption for enhanced wireless network security
- Universal (UN) model with configurable country or region code
- Network Address Translation (NAT) for easy network setup
- Millisecond-level client-based Turbo Roaming with under 150 ms recovery time between APs
- Built-in 2.4 GHz and 5 GHz band pass filter
- Integrated antenna isolation
- Adaptive self-forming, self-healing AeroMesh mesh networking
- Developed according to IEC 62443-4-1 and compliant with IEC 62443-4-2 cybersecurity standards
- Redundant DC power inputs plus PoE power option

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11a/b/g/n/ac Wave 2, 2.4 GHz and 5 GHz concurrent dual band
- Aggregated data rates up to 1.267 Gbps (2.4 GHz up to 400 Mbps, 5 GHz up to 867 Mbps)
- UN band with configurable country/region code, DFS channel support
- WLAN modes: Access point, Client, Client-Router, Master, Slave, Sniffer, Mesh
- 2 x 10/100/1000BaseT(X) RJ45 Ethernet ports, one with PoE input
- External omni-directional 2/2 dBi antennas
- Redundant 12-48 VDC power inputs or 48 VDC PoE
- Power consumption 28.4 W max
- RS-232 console port (8-pin RJ45), 2 digital inputs
- Security: WPA3, HTTPS/SSL, RADIUS, SSH
- IP30 metal housing, DIN-rail mounting (wall mount with optional kit)
- Operating temperature -25 to 60\u00b0C
- Weight 700 g

FAQs

Q: What does the UN band designation mean on the AWK-3252A-UN?
A: UN indicates a universal model with a configurable country or region code, so the same unit can be set up for different regulatory domains.

Q: Does the AWK-3252A-UN support both 2.4 GHz and 5 GHz?
A: Yes. It supports concurrent dual-band operation with aggregated data rates up to 1.267 Gbps, up to 400 Mbps on 2.4 GHz and up to 867 Mbps on 5 GHz.

Q: How can the AWK-3252A-UN be powered?
A: It accepts redundant 12-48 VDC inputs or 48 VDC PoE on one of its two Gigabit Ethernet ports. Maximum power consumption is 28.4 W.

Q: What operating temperature range does it support?
A: This model is rated for -25 to 60\u00b0C and is housed in an IP30 metal enclosure.

Q: Which wireless modes can it operate in?
A: It supports Access point, Client, Client-Router, Master, Slave, Sniffer and Mesh modes.

Q: How is the AWK-3252A-UN mounted?
A: It is DIN-rail mountable as standard, with wall mounting available using an optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
