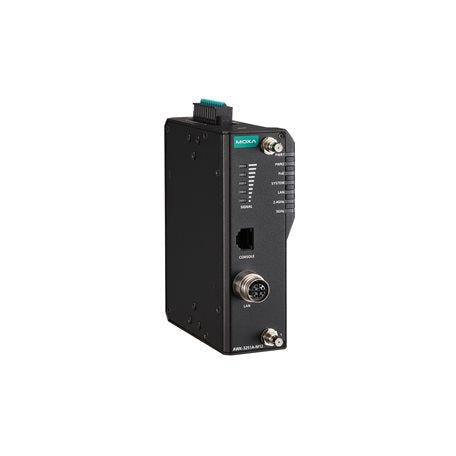

Moxa AWK-3251A-M12-RCC-UN | AWK-3251A-RCC Railway Wi-Fi 5 AP/Client, M12, Universal Band, -25 to 60°C

Authorised Moxa Partner

SKU:AWK-3251A-M12-RCC-UN

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-3251A-M12-RCC-UN is a railway Wi-Fi 5 industrial wireless AP, bridge and client with M12 connectors, built for onboard and train-to-ground connectivity. This universal band (-UN) model delivers dual-band IEEE 802.11a/b/g/n/ac on 2.4GHz and 5GHz, with an operating range of -25 to 60°C and no conformal coating, and is optimised for passenger Wi-Fi services.

It features a single M12 X-coded Gigabit port with IEEE 802.3at PoE, QMA antenna connectors, redundant dual power inputs and support for up to 120 client connections. It complies with sections of EN 50155 covering operating temperature, power input voltage, surge, ESD and vibration, and supports DIN-rail and wall mounting in an IP30 housing.

Features

- Complies with sections of EN 50155 covering operating temperature, power input voltage, surge, ESD and vibration
- Optimised for passenger Wi-Fi services
- Redundant dual power inputs including PoE
- DIN-rail and wall mounting options
- Supports WPA3 security

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11a/b/g/n/ac Wi-Fi 5, 2.4GHz/5GHz dual radio
- Universal band model (-UN)
- 1 x 10/100/1000BaseT(X) M12 X-coded 8-pin port with IEEE 802.3at PoE
- QMA WLAN antenna connectors
- Up to 120 client connections
- Wireless security: WEP, WPA/WPA2/WPA3-Personal and Enterprise (802.1X/RADIUS)
- Redundant dual power inputs: 12 to 48 VDC, 48 VDC (PoE)
- 2 digital inputs, relay output 1A@24VDC
- IP30 rated, DIN-rail and wall mounting
- Operating temperature -25 to 60°C
- Humidity 5 to 95% (non-condensing)
- MTBF 838,684 hrs (Telcordia SR-332)
- Certifications: EN 300 328, EN 301 489-1/17, EN 301 893, FCC, MIC, TELEC, NCC, RCM, SRRC, IC

FAQs

Q: Is the AWK-3251A-M12-RCC-UN suitable for passenger Wi-Fi on trains?
A: Yes. It is optimised for passenger Wi-Fi services and suits both onboard and train-to-ground wireless networks.

Q: Does it comply with EN 50155?
A: It complies with sections of EN 50155 covering operating temperature, power input voltage, surge, ESD and vibration.

Q: Can it be powered over Ethernet?
A: Yes. The M12 X-coded Gigabit port supports IEEE 802.3at PoE, and the unit also provides redundant dual power inputs of 12 to 48 VDC.

Q: What does the -UN suffix mean?
A: The -UN suffix denotes the universal band model, which covers the 2.4GHz and 5GHz IEEE 802.11a/b/g/n/ac bands for use in multiple regions.

Q: How many wireless clients can it support?
A: It supports up to 120 client connections.

Q: What wireless security options are supported?
A: It supports WEP, WPA, WPA2 and WPA3 in both Personal and Enterprise (802.1X/RADIUS) modes.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
