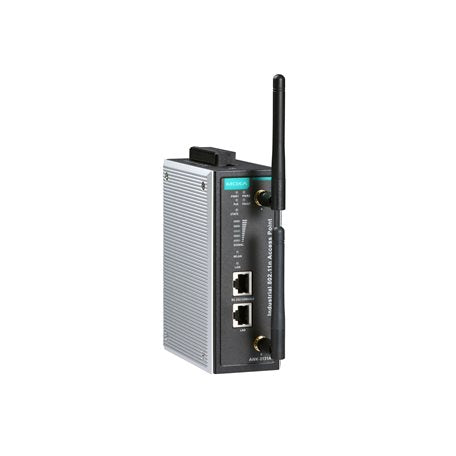

Moxa AWK-3131A-SSC-RTG-EU-T | AWK-3131A-RTG Railway Access Point, SC Single-Mode, EU Band, -40 to 75C

Authorised Moxa Partner

SKU:AWK-3131A-SSC-RTG-EU-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-3131A-SSC-RTG-EU-T is an IEEE 802.11a/b/g/n railway trackside indoor single-radio access point, client and bridge built for train-to-ground communication. This SKU features a single-mode SC fibre port and the EU frequency band, with an operating temperature range of -40 to 75°C, making it suited to rail and other demanding industrial wireless deployments.

The IP30 metal housing supports DIN-rail mounting, with wall mounting available using an optional kit. Redundant 12 to 48 VDC dual power inputs or 48 VDC PoE provide flexible installation, and controller-based Turbo Roaming supports reliable handover for fast-moving trains. Partial EN 50155 and EN 50121-4 compliance supports railway use.

Features

- IEEE 802.11a/b/g/n compliant for flexible wireless connectivity
- SC optical fibre connection for long-distance trackside links
- QoS (WMM) and VLAN support
- Controller-based Turbo Roaming with handover under 50 ms
- Designed for train-to-ground communication at speeds up to 120 km/h
- WPA/WPA2 Personal and Enterprise security

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11a/b/g/n, single radio, up to 300 Mbps
- EU band: 2.412-2.472 GHz (13 channels), 5.180-5.240 GHz and 5.260-5.320 GHz with DFS
- 1 x 100BaseFX single-mode SC port (1310 nm, 40 km typical)
- Input: 12 to 48 VDC redundant dual inputs, or 48 VDC PoE
- Maximum power consumption: 13 W
- Operating temperature: -40 to 75°C
- IP30 metal housing
- Dimensions: 52.9 x 151.9 x 127.4 mm, 850 g
- DIN-rail mounting, wall mounting with optional kit
- RS-232 console port (RJ45)
- Partial EN 50155 / EN 50121-4 compliance

FAQs

Q: What fibre connection does the AWK-3131A-SSC-RTG-EU-T use?
A: It has one 100BaseFX single-mode SC port operating at 1310 nm with a typical reach of 40 km.

Q: Which wireless standards and frequency band does it support?
A: It supports IEEE 802.11a/b/g/n on a single radio with up to 300 Mbps. This EU model covers 2.4 GHz (13 channels) and 5 GHz bands with DFS.

Q: How can the access point be powered?
A: It accepts redundant dual 12 to 48 VDC inputs, or 48 VDC PoE, with a maximum power consumption of 13 W.

Q: What temperature range is it rated for?
A: The operating temperature range is -40 to 75°C, suitable for trackside and other harsh industrial environments.

Q: How is it mounted?
A: It mounts on a DIN rail as standard, and wall mounting is possible with an optional kit. The housing is IP30 rated metal.

Q: Is it suitable for train-to-ground communication?
A: Yes. It is designed for train-to-ground links at speeds up to 120 km/h, with controller-based Turbo Roaming and partial EN 50155 and EN 50121-4 compliance.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
