Moxa AWK-3131A-SSC-RTG-EU-CT-T | AWK-3131A Railway Trackside 802.11n Access Point, EU Band, SC Fibre, -40 to

Authorised Moxa Partner

SKU:AWK-3131A-SSC-RTG-EU-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

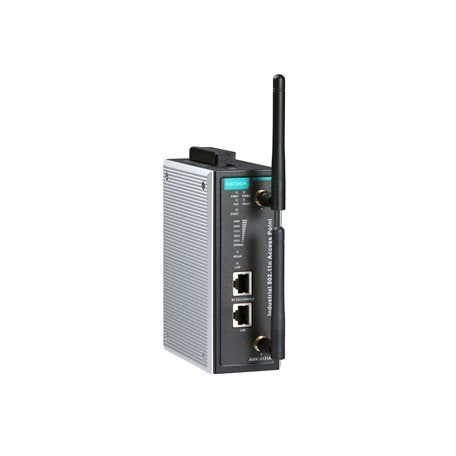

The Moxa AWK-3131A-SSC-RTG-EU-CT-T is an industrial 802.11n railway trackside indoor single-radio access point/client built for reliable train-to-ground communication. This EU band variant features a single-mode SC fibre port, conformal coating and a -40 to 75°C operating temperature range, making it suited to harsh rail environments with speeds up to 120 km/h.

It supports Access Point, Client, Client-Router and Sniffer modes, with controller-based Turbo Roaming for recovery under 50 ms. The IP30 metal housing, redundant 12-48 VDC power inputs or 48 VDC PoE, and DIN-rail mounting make it straightforward to deploy in trackside and rolling stock cabinets.

Features

- Controller-based Turbo Roaming with recovery time under 50 ms
- SC optical fibre connection
- QoS (WMM) and VLAN for efficient network traffic
- Designed for train-to-ground applications at speeds up to 120 km/h
- Wireless security: WPA/WPA2 Personal and Enterprise (802.1X/RADIUS), WEP
- Management via SNMPv1/v2c/v3, HTTP/HTTPS and more
- Reverse polarity protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11a/b/g/n, single radio, up to 300 Mbps (802.11n)
- EU band: 2.412-2.472 GHz (13 channels), 5.180-5.240 GHz and 5.260-5.320 GHz (4 channels each), DFS support
- WLAN operation modes: Access Point, Client, Client-Router, Sniffer
- Antenna connectors: 2 x QMA
- 100BaseFX single-mode SC fibre port, 1310 nm, 40 km typical distance, 29 dB link budget
- Serial console: RS-232 (RJ45-type)
- 2 digital inputs and 1 relay alarm output (1 A @ 24 VDC)
- Input voltage: 12-48 VDC with redundant dual inputs, or 48 VDC PoE
- Power consumption: maximum 13 W
- IP30 metal housing, 52.9 x 151.9 x 127.4 mm, 850 g
- DIN-rail mounting, wall mounting with optional kit
- Operating temperature: -40 to 75°C
- Conformal coating
- Certifications include EN 50121-4 and EN 50155 (partial compliance)

FAQs

Q: What does the SSC in this model number mean?
A: It indicates a single-mode SC fibre port, a 100BaseFX connection with a 1310 nm wavelength and a typical distance of 40 km.

Q: Which frequency band does this model support?
A: This is the EU band variant, covering 2.412-2.472 GHz and the 5.180-5.240 GHz and 5.260-5.320 GHz ranges with DFS support.

Q: Can it operate in extreme temperatures?
A: Yes. The -T model operates from -40 to 75°C and includes conformal coating for added protection in harsh conditions.

Q: How is the access point powered?
A: It accepts 12-48 VDC through redundant dual inputs, or 48 VDC via PoE. Maximum power consumption is 13 W.

Q: What WLAN modes are supported?
A: Access Point, Client, Client-Router and Sniffer modes.

Q: What antenna connectors does it use?
A: It has two QMA antenna connectors.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
