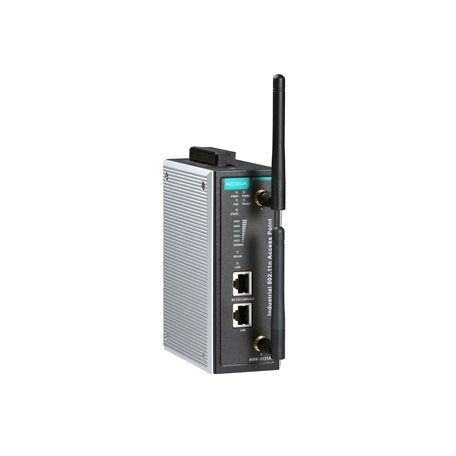

Moxa AWK-3131A-M12-RTG-EU-T | AWK-3131A Railway Wi-Fi 4 Access Point, M12, EU Band, -40 to 75C

Authorised Moxa Partner

SKU:AWK-3131A-M12-RTG-EU-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-3131A-M12-RTG-EU-T is an 802.11n railway onboard access point and client for train-to-ground communication. This EU-band model uses M12 anti-vibration connectors and an IP30 metal housing, with an extended -40 to 75C operating temperature (-T) for harsh rolling stock environments. It supports train speeds up to 120 km/h.

The single-radio design supports 2.4 GHz and 5 GHz operation with access point, client, client-router and sniffer modes. Redundant 12 to 48 VDC power inputs or 48 VDC PoE, DIN-rail mounting and a relay alarm output make it suited to onboard railway networks. It is certified to EN 50155 and EN 50121-4. Controller-based Turbo Roaming is available when used with a Moxa wireless controller.

Features

- Designed for train-to-ground applications at train speeds up to 120 km/h
- M12 anti-vibration connectors
- QoS (WMM) and VLAN for efficient network traffic
- Controller-based Turbo Roaming (under 50 ms) with a Moxa wireless controller (WAC-1001 / WAC-2004)
- Redundant dual DC power inputs and reverse polarity protection
- WPA/WPA2-Enterprise (802.1X/RADIUS) and WPA/WPA2-Personal security, WEP, SSID broadcast control
- Extended -40 to 75C operating temperature

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- WLAN standards: IEEE 802.11a/b/g/n, 2.4 GHz and 5 GHz, 20/40 MHz channels
- Transmission rate: 802.11n up to 300 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps
- Frequency band: EU
- WLAN operation modes: Access point, Client, Client-Router, Sniffer
- 1 x 10/100BaseT(X) M12 D-coded 4-pin female port with PoE input support
- 1 x QMA antenna connector
- Input voltage: 12 to 48 VDC redundant dual inputs, or 48 VDC PoE
- Power consumption: 10.5 W max
- Housing: metal, IP30
- Dimensions: 52.9 x 151.9 x 127.4 mm; weight 850 g
- Installation: DIN-rail mounting, wall mounting with optional kit
- Operating temperature: -40 to 75C
- Alarm: relay output 1 A @ 24 VDC
- Serial console: RS-232 (RJ45-type)
- Approvals: EN 50155, EN 50121-4, CE, FCC, RoHS

FAQs

Q: What is the AWK-3131A-M12-RTG-EU-T designed for?
A: It is a railway onboard access point and client designed for train-to-ground communication at train speeds up to 120 km/h.

Q: Which operating modes does it support?
A: It supports access point, client, client-router and sniffer modes on both 2.4 GHz and 5 GHz bands.

Q: How is it powered?
A: It accepts redundant 12 to 48 VDC dual inputs, or 48 VDC PoE through the M12 Ethernet port.

Q: What does the -T suffix mean?
A: The -T model is rated for an extended operating temperature range of -40 to 75C.

Q: Does it support fast roaming?
A: Yes. Controller-based Turbo Roaming with roaming times under 50 ms is available when used with a Moxa wireless controller such as the WAC-1001 or WAC-2004.

Q: Which railway standards does it meet?
A: It is certified to EN 50155 and EN 50121-4, along with CE, FCC and RoHS approvals.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
