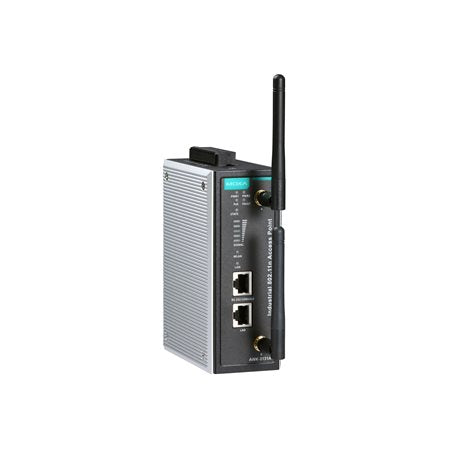

Moxa AWK-3131A-M12-RTG-EU-CT-T | AWK-3131A-RTG Railway Wi-Fi 4 Access Point, M12, EU Band, -40 to 75C

Authorised Moxa Partner

SKU:AWK-3131A-M12-RTG-EU-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-3131A-M12-RTG-EU-CT-T is a Wi-Fi 4 (802.11n) railway onboard train-to-ground access point and client for rolling stock networks. It features M12 connectors, EU frequency band operation, an IP30 metal housing, conformal coating and an operating temperature range of -40 to 75°C. Single-radio 802.11a/b/g/n operation delivers data rates up to 300 Mbps in AP or client mode.

Built to meet EN 50155 requirements for railway applications, this indoor access point supports controller-based Turbo Roaming with handover times under 50 ms for reliable connectivity at speed. It offers redundant dual 12-48 VDC power inputs or 48 VDC PoE, plus WPA/WPA2-Enterprise and Personal security, QoS (WMM) and VLAN support for managing onboard network traffic.

Features

- Complies with all EN 50155 mandatory test items for rolling stock railway applications
- M12 anti-vibration connectors
- Controller-based Turbo Roaming (under 50 ms)
- QoS (WMM) and VLAN for efficient network traffic
- WPA/WPA2-Enterprise (802.1X/RADIUS) and WPA/WPA2-Personal security, with firewall filtering
- Reverse polarity protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11a/b/g/n single radio, AP/client mode
- 2.4 GHz: 802.11b/g/n and 5 GHz: 802.11a/n, 20/40 MHz channels, 64 QAM
- EU band: 2.412-2.472 GHz (13 channels) plus 5 GHz channels
- Data rate up to 300 Mbps (802.11n)
- 1 x 10/100BaseT(X) M12 D-coded 4-pin female port with IEEE 802.3af PoE
- 2 digital inputs; relay alarm output 1 A @ 24 VDC
- Input voltage 12-48 VDC, redundant dual inputs, or 48 VDC PoE
- Power consumption 10.5 W max
- Metal housing, IP30
- Dimensions 52.9 x 151.9 x 127.4 mm; weight 850 g
- DIN-rail mounting, wall mounting with optional kit
- Operating temperature -40 to 75°C
- Conformal coating

FAQs

Q: Is the AWK-3131A-M12-RTG-EU-CT-T suitable for rolling stock?
A: Yes. It complies with all EN 50155 mandatory test items for rolling stock railway applications and uses M12 anti-vibration connectors.

Q: What is the operating temperature range?
A: It operates from -40 to 75°C, and the conformal coating adds protection for the circuit boards in harsh environments.

Q: How is the access point powered?
A: It accepts 12-48 VDC with redundant dual inputs, or 48 VDC via IEEE 802.3af PoE on the M12 Ethernet port. Maximum power consumption is 10.5 W.

Q: Which frequency bands does it support?
A: It is a single-radio 802.11a/b/g/n device covering 2.4 GHz and 5 GHz, with the EU band (2.412-2.472 GHz, 13 channels) on 2.4 GHz.

Q: How does it handle roaming on a moving train?
A: It supports controller-based Turbo Roaming with handover times under 50 ms for continuous connectivity between trackside access points.

Q: How is it mounted?
A: It supports DIN-rail mounting as standard, and wall mounting using an optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
