Moxa AWK-3131A-M12-RCC-EU-T | AWK-3131A-RCC Rail Wi-Fi 4 AP/Client, M12, EU Band, -40 to 75C

Authorised Moxa Partner

SKU:AWK-3131A-M12-RCC-EU-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

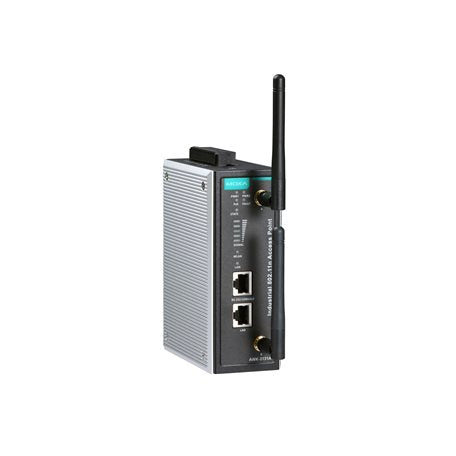

The Moxa AWK-3131A-M12-RCC-EU-T is a Wi-Fi 4 (802.11n) rail onboard single-radio access point and client in an IP30 metal housing, built for passenger Wi-Fi and wireless train backbone networks. This EU band model without conformal coating operates across a -40 to 75°C temperature range and uses M12 anti-vibration connectors suited to rolling stock.

It supports dual-band 2.4 GHz and 5 GHz operation with up to 300 Mbps data rates and up to 60 client connections, and complies with all EN 50155 mandatory test items. Redundant dual 12 to 48 VDC inputs or 48 VDC PoE give flexible power options, while DIN-rail mounting simplifies installation inside carriage equipment cabinets.

Features

- Complies with all EN 50155 mandatory test items
- Accelerated Roaming / Advanced Client-based Connection (ACC) for reliable wireless carriage backbone networks
- MIMO technology increases data throughput and range
- M12 anti-vibration connectors for rail environments
- PoE powered for easier installation and flexible deployment
- Optimised for onboard passenger Wi-Fi services
- Redundant dual power inputs

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi 4 IEEE 802.11a/b/g/n, single radio, up to 300 Mbps data rate
- 2.4 GHz: 802.11b/g/n, 64 QAM, 20/40 MHz
- 5 GHz: 802.11a/n, 64 QAM, 20/40 MHz
- EU band: 2.412-2.472 GHz (13 ch), 5.180-5.240 GHz (4 ch), 5.260-5.320 GHz (4 ch), 5.500-5.700 GHz (11 ch) with DFS
- Up to 60 client connections
- Wireless security: WEP 64/128-bit, WPA/WPA2-Personal and Enterprise (802.1X/RADIUS, TKIP, AES)
- M12 anti-vibration connectors (M12/QMA)
- Input voltage: 12 to 48 VDC, redundant dual inputs, or 48 VDC PoE
- Power consumption: 8.03 W max.
- Housing: metal, IP30
- Dimensions: 52.9 x 151.9 x 127.4 mm
- Weight: 850 g
- Operating temperature: -40 to 75°C
- Installation: DIN-rail mounting, wall mounting with optional kit
- Reverse polarity protection

FAQs

Q: What is the AWK-3131A-M12-RCC-EU-T designed for?
A: It is a rail onboard Wi-Fi 4 access point and client for passenger Wi-Fi services and wireless train backbone networks, with EN 50155 compliance and M12 anti-vibration connectors.

Q: Which frequency bands does this model support?
A: It is the EU band model, supporting 2.4 GHz (2.412-2.472 GHz, 13 channels) and 5 GHz bands with DFS, using IEEE 802.11a/b/g/n with up to 300 Mbps data rates.

Q: How is the AWK-3131A-M12-RCC-EU-T powered?
A: It accepts 12 to 48 VDC with redundant dual inputs, or 48 VDC PoE. Maximum power consumption is 8.03 W.

Q: What is the operating temperature range?
A: This -T model operates from -40 to 75°C. This variant does not include conformal coating.

Q: How many clients can connect to this access point?
A: It supports up to 60 client connections.

Q: How is it mounted?
A: It mounts on a DIN-rail as standard, and can be wall mounted using an optional mounting kit. The housing is metal with an IP30 rating.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
