Moxa AWK-3131A-M12-RCC-EU-CT-T | AWK-3131A-RCC Railway Wi-Fi 4 AP, EU Band, -40 to 75C, Coated

Authorised Moxa Partner

SKU:AWK-3131A-M12-RCC-EU-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

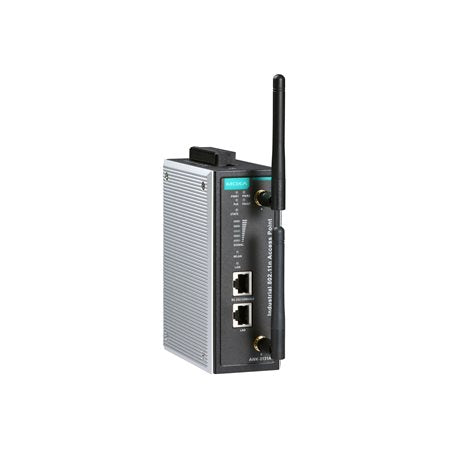

The Moxa AWK-3131A-M12-RCC-EU-CT-T is a Wi-Fi 4 (802.11n) railway onboard single-radio access point and client in an IP30 metal housing. This EU-band variant is rated for -40 to 75°C operation and features PCB conformal coating, making it well suited to onboard passenger Wi-Fi and inter-carriage wireless links in demanding rail environments.

M12 connectors suit railway onboard installation, and the unit can be powered via PoE. It supports up to 60 concurrent client connections with data rates up to 300 Mbps across 2.4 GHz and 5 GHz, and mounts on a DIN rail or on a wall with the optional kit.

Features

- Auto Carriage Connection (ACC) for wireless inter-carriage connections
- Client-based Turbo Roaming with sub-150 ms handoff for seamless data offloading
- Client isolation
- WPA/WPA2-Enterprise (802.1X/RADIUS), WPA/WPA2-Personal, WEP and SSID hiding
- Optimised for passenger Wi-Fi services
- PCB conformal coating for harsh onboard environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi 4 (IEEE 802.11a/b/g/n), single radio, data rates up to 300 Mbps
- 2.4 GHz: 802.11b/g/n, 64 QAM, 20/40 MHz; 5 GHz: 802.11a/n, 64 QAM, 20/40 MHz
- EU band: 2.412-2.472 GHz (13 channels); 5.180-5.240 GHz (4 channels); 5.260-5.320 GHz (4 channels); 5.500-5.700 GHz (11 channels)
- Supports up to 60 concurrent client connections
- M12 connectors for railway onboard use; can be powered via PoE
- IP30 rating, metal housing
- Operating temperature -40 to 75°C
- PCB conformal coating
- Dimensions 52.9 x 151.9 x 127.4 mm; weight 850 g
- DIN-rail mounting; wall mounting with optional kit
- MTBF 742,649 hrs (Telcordia SR332)

FAQs

Q: What is the AWK-3131A-M12-RCC-EU-CT-T designed for?
A: It is a railway onboard Wi-Fi 4 access point and client designed for passenger Wi-Fi services and wireless inter-carriage connections.

Q: What does the EU band variant mean?
A: The radio is configured for EU channels: 2.412-2.472 GHz (13 channels) and 5 GHz channels across 5.180-5.240, 5.260-5.320 and 5.500-5.700 GHz.

Q: What operating temperature range does it support?
A: The -T model operates from -40 to 75°C.

Q: What does the CT suffix indicate?
A: CT indicates PCB conformal coating, which adds protection for the circuitry in harsh onboard environments.

Q: How many clients can it support?
A: It supports up to 60 concurrent client connections.

Q: How is it powered and mounted?
A: It can be powered via PoE and uses M12 connectors. It mounts on a DIN rail, or on a wall with the optional wall-mount kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
