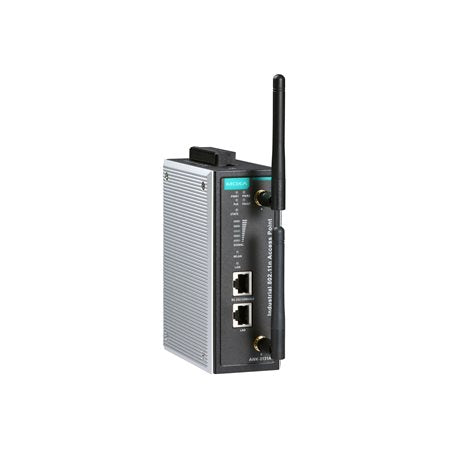

Moxa AWK-3131A-M12-RCC-EU-CT | AWK-3131A Railway Wi-Fi 4 Access Point/Client, EU, Conformal

Authorised Moxa Partner

SKU:AWK-3131A-M12-RCC-EU-CT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-3131A-M12-RCC-EU-CT is a Wi-Fi 4 (802.11n) railway onboard single-radio access point/client built for passenger Wi-Fi and inter-carriage wireless backbone networks. This variant uses the EU frequency band, operates from -25 to 60°C and includes conformal coating for added protection in demanding rolling stock environments.

It combines dual-band 2.4 GHz and 5 GHz operation with data rates up to 300 Mbps, M12 anti-vibration connectors and an IP30 housing. Auto Carriage Connection and fast client-based Turbo Roaming keep connections stable across carriages, while PoE powering and a removable terminal block simplify installation. It is certified to EN 50121-4 and EN 50155 for railway use.

Features

- Auto Carriage Connection (ACC) for wireless inter-carriage connections
- Up to 60 concurrent device connections with client isolation
- Sub-150 ms client-based Turbo Roaming for seamless data offloading
- PoE powering for easier installation
- Optimised for railway onboard passenger Wi-Fi
- Conformal coating for added protection against moisture and dust

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi 4 IEEE 802.11a/b/g/n, single radio, 2.4 GHz and 5 GHz
- Data rates up to 300 Mbps (802.11n)
- EU frequency band: 2.412-2.472 GHz (13 channels), 5.180-5.240 GHz (4 channels)
- Up to 60 concurrent client connections
- Operation modes: Access Point, Client
- M12 anti-vibration connectors
- IP30 rated housing
- Operating temperature -25 to 60°C
- Conformal coating (CT)
- Maximum power consumption 8.03 W
- Removable 10-contact terminal block, PoE powered, reverse polarity protection
- Certifications: EN 50121-4, EN 50155

FAQs

Q: What is the AWK-3131A-M12-RCC-EU-CT designed for?
A: It is a railway onboard Wi-Fi 4 access point/client for passenger Wi-Fi and wireless inter-carriage backbone connections.

Q: Which frequency band does this model use?
A: This variant uses the EU band, covering 2.412-2.472 GHz (13 channels) and 5.180-5.240 GHz (4 channels).

Q: What does the CT suffix mean?
A: CT denotes conformal coating, which adds protection for the circuit boards in harsh onboard environments.

Q: What operating temperature range does it support?
A: It operates from -25 to 60°C.

Q: Can it be powered over Ethernet?
A: Yes, it supports PoE powering, and it also has a removable 10-contact terminal block with reverse polarity protection.

Q: Which railway standards does it meet?
A: It is certified to EN 50121-4 and EN 50155.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
