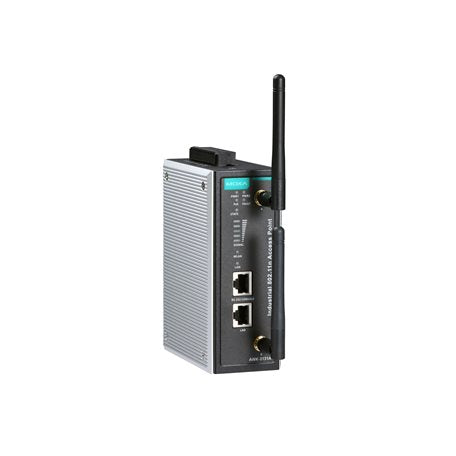

Moxa AWK-3131A-M12-RCC-EU | AWK-3131A Railway Wi-Fi 4 AP/Client, M12, EU Band

Authorised Moxa Partner

SKU:AWK-3131A-M12-RCC-EU

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AWK-3131A-M12-RCC-EU is a Wi-Fi 4 (802.11n) railway onboard wireless access point and client built for train environments. This single radio IP30 unit uses M12 connectors, the EU frequency band and a standard -25 to 60C operating temperature range, making it suited to wireless inter-carriage connections and passenger Wi-Fi.

Supporting both 2.4 GHz and 5 GHz operation with data rates up to 300 Mbps, it handles up to 60 concurrent client connections. A metal housing, PCB conformal coating, redundant dual power inputs and optional PoE power make it a robust choice for onboard rail networks, with DIN-rail mounting and an optional wall mount kit for flexible installation.

Features

- Auto Carriage Connection (ACC) for wireless inter-carriage backbone networks
- Client-based Turbo Roaming with handoff under 150 ms
- Client isolation
- Optimised for passenger Wi-Fi services
- Can be powered via PoE for easier installation
- Redundant dual power inputs for reliable onboard operation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- IEEE 802.11a/b/g/n single radio, 2.4 GHz and 5 GHz
- Data rates up to 300 Mbps (802.11n)
- EU band: 2.412-2.472 GHz (13 channels) and 5.180-5.240 GHz (4 channels), plus additional 5 GHz channels
- Up to 60 concurrent client connections
- Input voltage 12 to 48 VDC with redundant dual inputs
- PoE-powered option (48 VDC)
- M12 connectors
- Metal housing, IP30 rated
- Operating temperature -25 to 60C
- Dimensions 52.9 x 151.9 x 127.4 mm
- Weight 850 g
- DIN-rail mounting, wall mounting with optional kit
- PCB conformal coating

FAQs

Q: What is the AWK-3131A-M12-RCC-EU designed for?
A: It is a railway onboard Wi-Fi 4 access point and client designed for wireless inter-carriage connections and passenger Wi-Fi services in trains.

Q: Which frequency band does this model use?
A: This is the EU band model, supporting 2.412-2.472 GHz (13 channels) and 5.180-5.240 GHz (4 channels), plus other 5 GHz channels per the datasheet.

Q: What operating temperature range does it support?
A: This is the standard-temperature model, rated for -25 to 60C. A wide-temperature -T variant is available separately for -40 to 75C.

Q: How is the AWK-3131A-M12-RCC-EU powered?
A: It accepts 12 to 48 VDC with redundant dual power inputs, and can also be powered via PoE at 48 VDC.

Q: How many clients can it support?
A: It supports up to 60 concurrent client connections.

Q: What mounting options are available?
A: It supports DIN-rail mounting as standard, and wall mounting with an optional mounting kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
